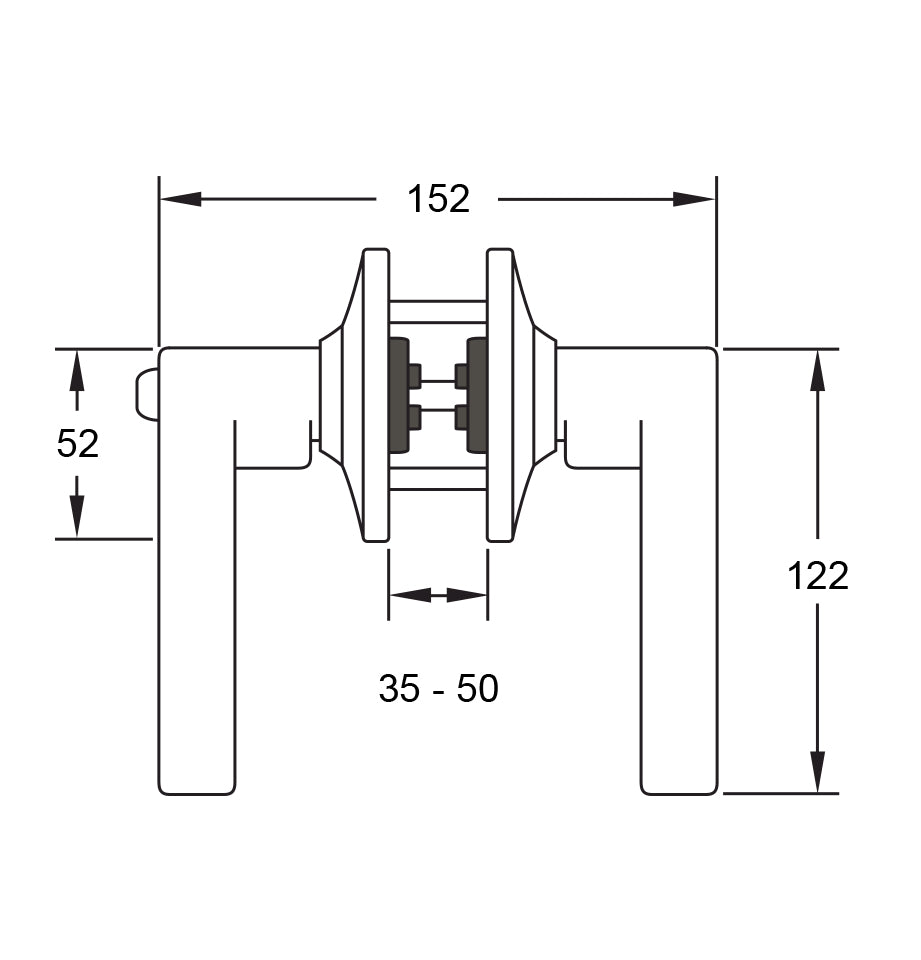

Tubular Lever Lockset Standard Duty
Tubular Lever Lockset Standard Duty
Features
• For flush timber or wooden doors
• Suitable for door leaf thickness 35-50 mm
• Strike plate: 56 mm full lip square corner standard
• Door opening direction: Fit to right and left hand door
• Both levers locked or unlocked by key outside or turning
button inside
Technical data
• Material: Zinc alloy
• Cylinder: 5-pin
• Backset 60 or 70 mm adjustable
Supplied with
• 1 Lever lockset
• 1 Latch
• 2 Keys
• 1 Striking plate
• 1 Assembly key
• 1 set of fixing material
Function | Finish | Cat. No. |
Entrance | Satin Nickel - RH | 489.10.086 |
Entrance | Satin Nickel - LH | 489.10.087 |
Entrance | Antique Brass - RH | 489.10.084 |
Entrance | Antique Brass - LH | 489.10.085 |
Privacy | Satin Nickel - RH | 489.10.092 |
Privacy | Satin Nickel - LH | 489.10.093 |
Privacy | Antique Brass - RH | 489.10.090 |
Privacy | Antique Brass - LH | 489.10.091 |
