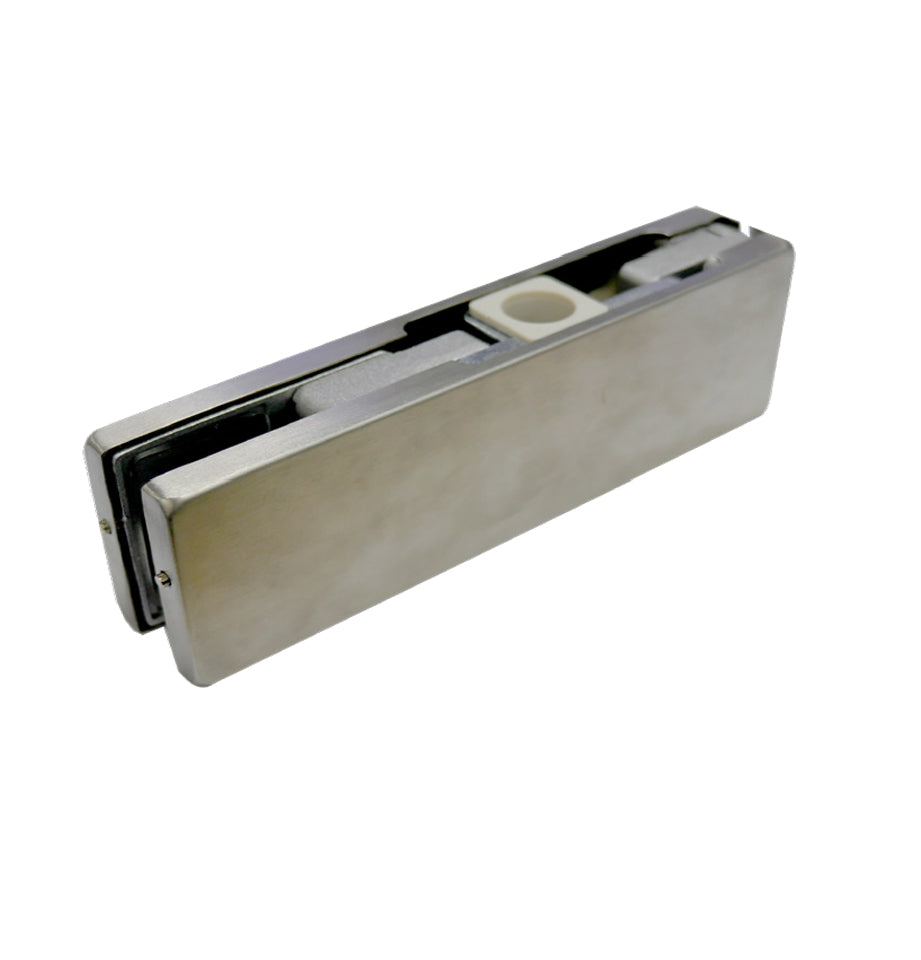

Top Patch Fittings

Features
• For glass thickness 10-12 mm
• Suitable for DIN left hand and DIN right hand
• For double action doors

Technical data
• Max. door weight: 80 kg
• Max. door leaf width: 1,100 mm

Installation
• Clamp fixing, concealed, with hexagon socket screws

Supplied with
1 bottom patch fitting for double action door
2 allen keys SW 2 and 5
1 additional gasket for glass thickness 10mm
