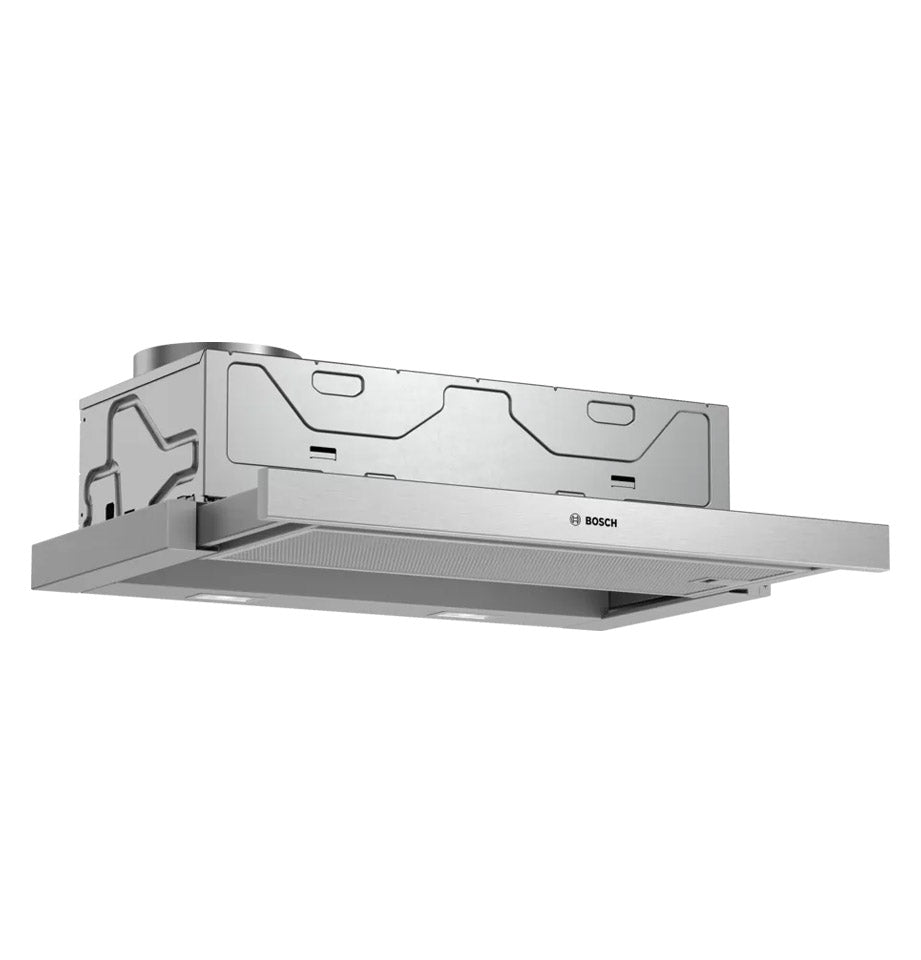

Series 4 60 cm Slimline Hood DFM064A52

DFM064A52 | Cat No.: 539.86.112

Suitable for exhaust air or recirculation
Extraction capacity for exhaust air according to DIN/EN 61591: max. normal position 405 m³/h
Noise level according to EN 60704-2-13 for exhaust air: Max. normal position: 62 dB dB(A) re 1 pW
Efficient carbon brushless EcoSilence Drive technology
Electronic control
Touch keys with LED indication
3 positions + intensive setting
Automatic switch-on and switch-off when the pull-out screen is moved or via main switch
stainless steel handle with logo
Automatic follow-up time (10 minutes)
2 x 1.5 W LED lighting
Color temperature: 3500 K
Light intensity: 294 lux
Grease filter
Metal grease filter(s), dishwasher safe
Energy class according to EU standard no. 65/2014: A (on a scale from A+++ to D)
Average energy consumption: 22.2 kWh/year
Energy class fan: B
Energy class lighting: A
Energy class grease filter: C
Max. noise level in normal position: 62 dB

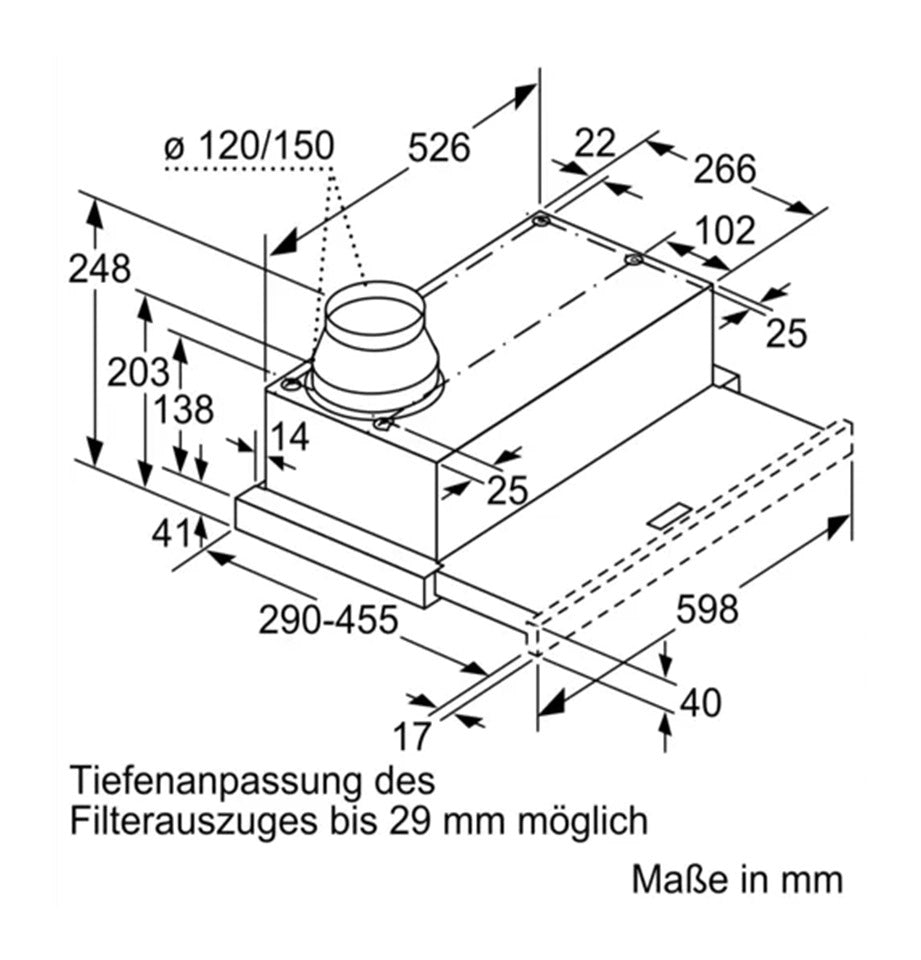

Dimensions (hxwxd): 203 x 598 x 290 mm
Installation dimensions (hxwxd): 162 x 526 x 290 mm
Diameter exhaust air connection Ø 150 mm, 120 mm
Length of connection cable 1.75 m
Connection value: 74 W
For installation in a 60 cm wide wall box Recirculation mode
requires a recirculation set (optional accessory)
Construction Built
-in Category Flat panel extractor hood
