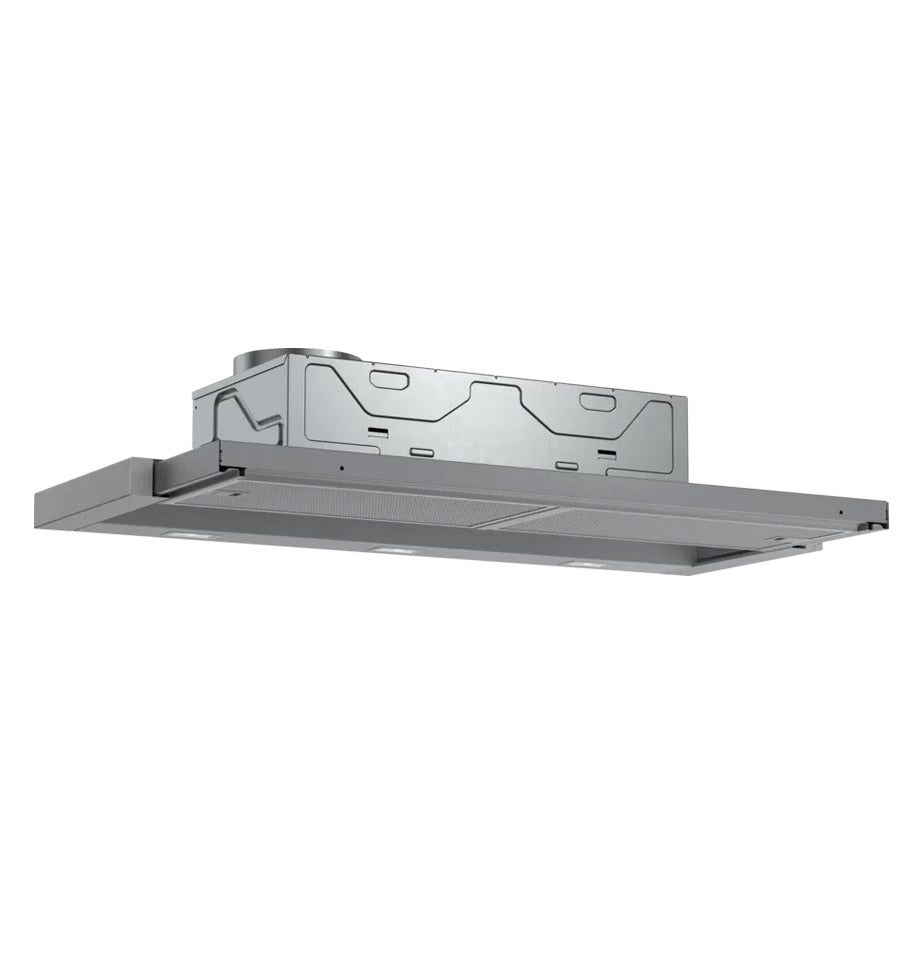

Series 4 90 cm Slimline Hood Extraction Rate: DFL094A51+ Handle strip, Stainless steel DSZ4985

Series 4 90 cm Slimline Hood Extraction Rate: DFL094A51+ Handle strip, Stainless steel DSZ4985

DFL094A51 | Cat No.: 539.86.123

design

  • 90 cm
  • For installation in a 60 cm or 90 cm wide special wall cabinet

Comfort

  • Short-stroke keys with LED display
  • Electronic control via short-stroke keys with LED display
  • Electronic control
  • Short-stroke keys (3 power levels and
  • 1 intensive level) with LED display
  • Electronic controls on the side
  • short-stroke keys
  • 3 power levels and
  • 1 intensive level
  • Intensive levels with automatic reset
  • Fan run-on 10 minutes

Furnishing

  • Even, bright lighting with 3 x 1.5W LED modules
  • Color Temperature: 3500K
  • Illuminance: 355 lux
  • Cassette with aluminum frame
  • Metal grease filter, dishwasher safe

operating mode and performance

  • Extraction performance according to EN 61591
  • max. 412 m³/h
  • Fan performance in exhaust air mode according to EN 61591:
  • max. normal level 266 m³/h, intensive level 412 m³/h
  • Circulation performance:
  • max. normal operation 166 m³/h
  • Intensive level 178 m³/h
  • Noise values ​​according to EN 60704-2-13 with exhaust air operation:
  • Max. normal level: 63 dB(A) re 1 pW
  • Intensive level: 70 dB(A) re 1 pW
  • Noise levels in recirculation mode:
  • max. normal level: 70 dB(A) re 1 pW
  • Intensive level: 71 dB(A) re 1 pW
  • Choice of exhaust air or recirculation mode
  • A standard air recirculation set (special accessory) is required for the recirculation mode
  • 1 single flow lying. EcoSilence Drive
  • EcoSilence Drive

planning and installation information

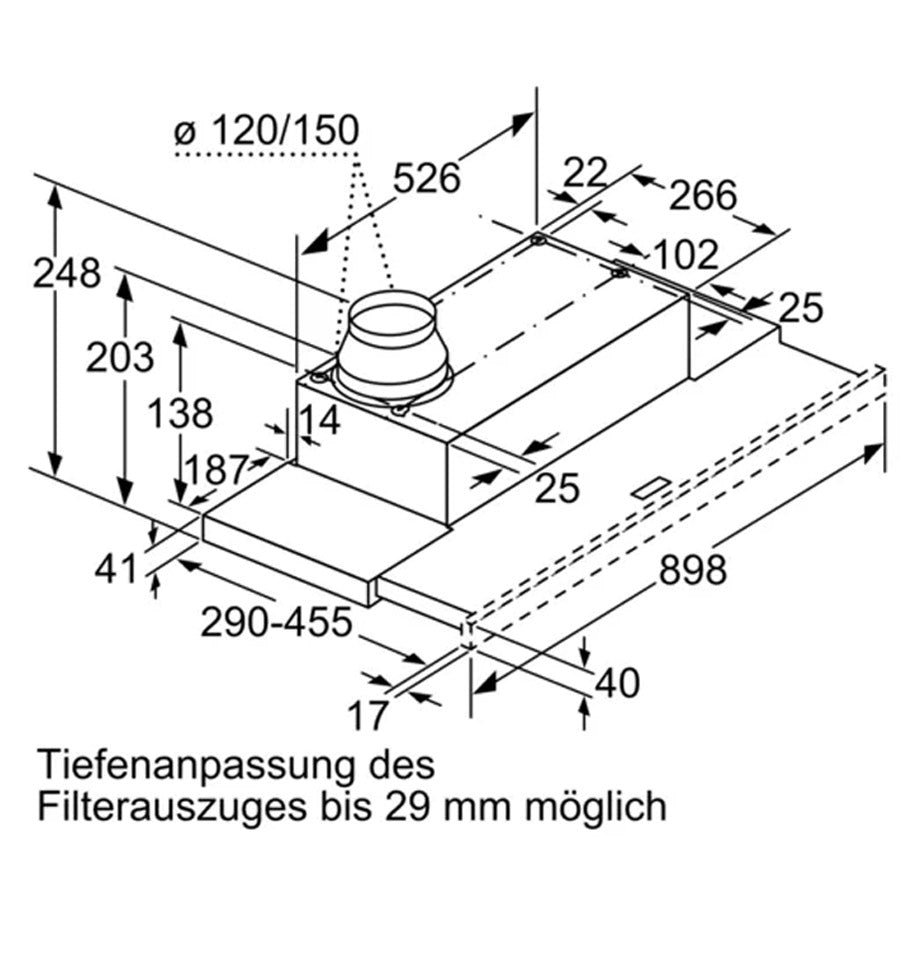

  • Device dimensions (HxWxD): 203 x 898 x 290 mm
  • Installation dimensions (HxWxD): 162 x 526 x 290 mm
  • Exhaust nozzle Ø 150 mm (Ø 120 mm included)
  • Length of connection cable: 1.75 m with plug
  • Handlebar available as an optional accessory

environment and safety

  • Energy efficiency class: A (on an energy efficiency class scale from A+++ to D)
  • Average energy consumption: 22.2 kWh/year*
  • Fan efficiency class: B*
  • Lighting efficiency class: A*
  • Grease filter efficiency class:
