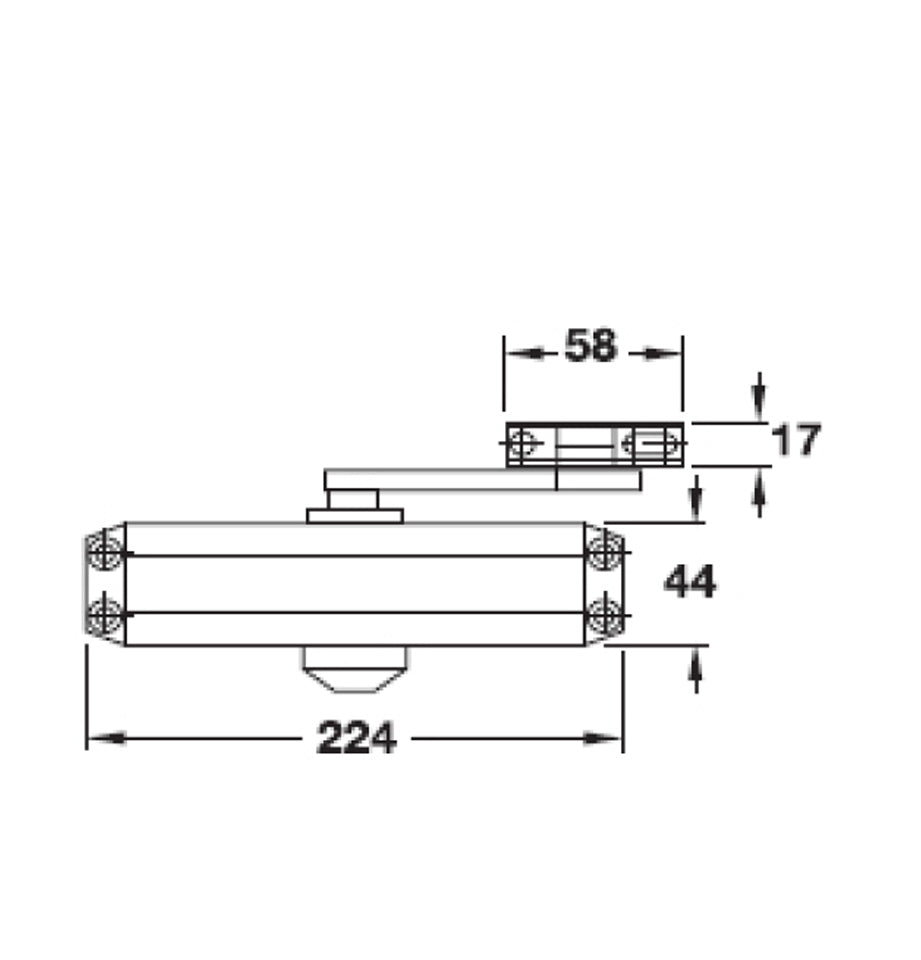

Overhead Door Closers With arm assembly - EN 3

Overhead Door Closers With arm assembly - EN 3

Function

Features:

  • Hydraulic latching action valve adjustable
  • Closing speed valve adjustable
  • Optional with hold-open arm (not fire rated)
  • Suitable for DIN right hand and DIN left hand
  • Closing force according to EN 1154

Technical data:

  • Closing force size EN3
  • Door width size 850–950 mm
  • Max. door weight 60 kg
  • Max. door opening angle, approx. 180º
  • Hold opening angle, approx. 90º
  • Class: 4 8 3 0 1 3


    Item Description - Version Silver
    Coloured

    EN 3 with standard arm

    		 931.89.029
    EN 3 with hold-open arm 931.89.039
