Overhead Door Closers – Startec With arm assembly, DCL 15, DCL 16 EN 2–4

Overhead Door Closers – Startec With arm assembly, DCL 15, DCL 16 EN 2–4

Material

Fire resistance and smoke control
Tested for fire resistant and smoke control doors.

  • Version: With standard arm or interlocking hold-open arm (optional)
  • Installation: Standard installation on pull side and overhead installation on push side
  • Adjustment facility: Closing speed, latching action adjustable
  • Closing force: 2–4
  • Door width: 1,100 mm
  • Door weight: <80 kg
  • Opening angle: <180°
  • Hold-open angle: <145°
  • Mounting: For DIN left and DIN right hand use
  • Standard: Certified in compliance with EN 1154:1996/A1:2002
  • Class: 4 | 8 | 2 – 4 | 0/1 | 1 | 3

Supplied with
Door closer complete with arm assembly

    Material / Finish Silver Coloured

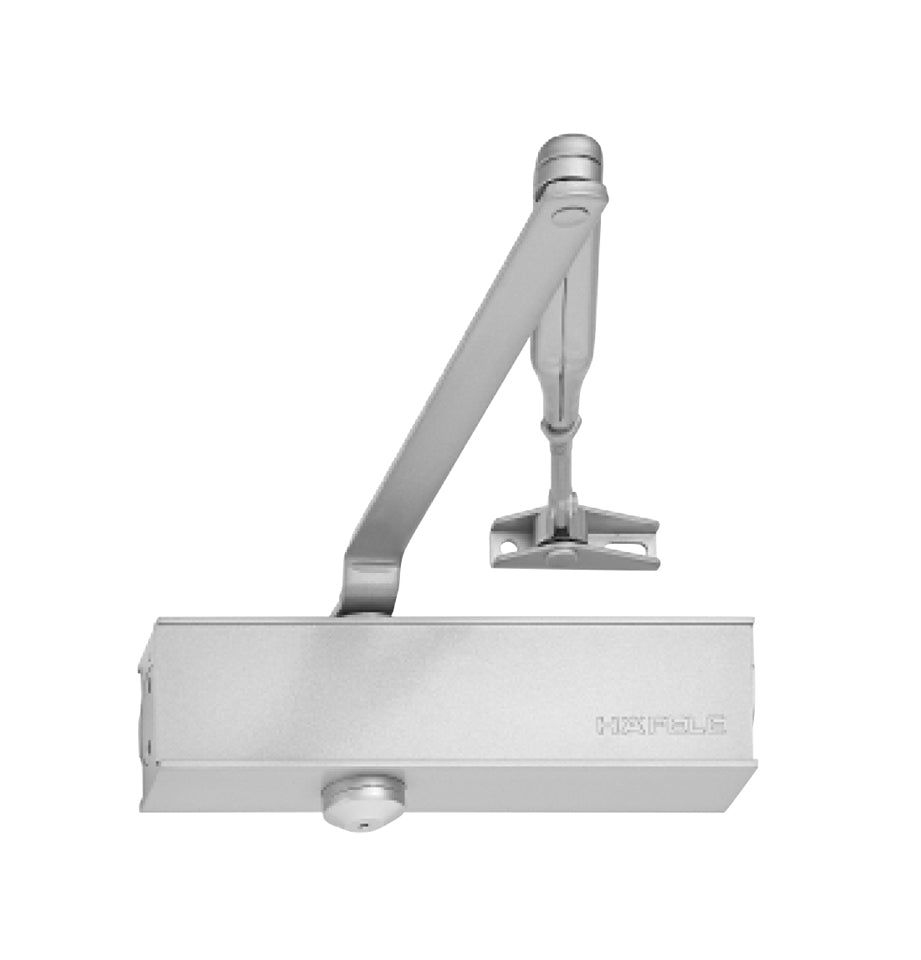

    DCL 15 with standard arm

    931.84.629

    DCL 16 with hold-open arm

    931.84.639
