12 V Loox LED 2022 Recess mounted light/surface mounted downlight, round
12 V Loox LED 2022 Recess mounted light/surface mounted downlight, round
Features:

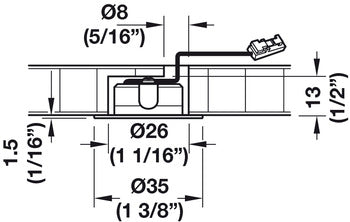

The small LED 2022 with a drill hole diameter of just 26 mm
is protected from water spray as a recess mounted light
with degree of protection IP44 and can therefore be used in
an extremely flexible way.
The LED 2022 can be used as a downlight with IP20 using
optionally available downlight housings and wedges.
>Dimmable
>Drill hole q: 26 mm
>Installation: For mounting in drilled
hole, for clamp fixing or for screw fixing
Note:
Housing, Switch, Driver and Power plug (Sold separately).
Cat. No. | 833.72.043 | 833.72.040 | 833.72.041 | 833.72.044 | 833.72.042 | 833.72.045 |
Colour temperature (K) | 3000 (warm white) | 3000 (warm white) | 4000 (cool white) | 4000 (cool white) | 5000 (cool white) | 5000 (cool white) |
(mm) | 14 |
14 | 14 | 14 | 14 | 14 |
Degree of protection | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) | IP44 as recess mounted light; IP20 with downlight housing (surface mounted downlight) |
Number of LEDs | 3 | 3 | 3 | 3 | 3 | 3 |
Luminous flux (lm) | 105 | 105 | 105 | 105 | 105 | 105 |
Lum. efficacy (lm/W) | 70 | 70 | 70 | 70 | 70 | 70 |
Colour rendering index (CRI) |
82 | 82 | 82 | 82 | 82 | 82 |
Energy efficiency class |
A+ | A+ | A+ | A+ | A+ | A+ |
Weighted energy consumption (kWh/1.000 h) |
1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
Finish/colour | Polished chrome plated |
Silver coloured anodized |
Silver coloured anodized |
Polished chrome plated |
Silver coloured anodized |
Polished chrome plated |
Supplied with | 1 light with 2 m lead | 1 light with 2 m lead | 1 light with 2 m lead | 1 light with 2 m lead | 1 light with 2 m lead | 1 light with 2 m lead |
