Loox Aluminium profiles, for LED strip lights

Features:

Profile cover finishes – different light effects

Milky cover: The material is dyed. Creates a homogeneous surfacedirected
light with uniform intensity. The light appears
“soft”.

Frosted cover: The surface is frosted. The light appears “velvet-white” and
creates a sophisticated, high-quality impression.
The light points are visible.

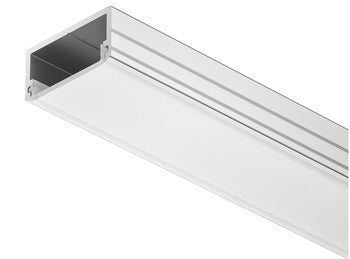

Cat. No.	833.72.840	833.72.843
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky	Frosted
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	9.5	9.5
Application	For mounting as downlight	For mounting as downlight
Supplied with	1 profile	1 profile

 >>Not suitable for operation with LED 3028.
>>LED 3013 and LED 3015 not rated for continuous duty (≥8 hours/day).

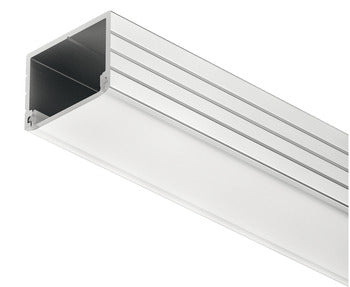

Cat. No.	833.72.841	833.72.842
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky	Frosted
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	14	14
Application	For mounting as downlight	For mounting as downlight
Supplied with	1 profile	1 profile

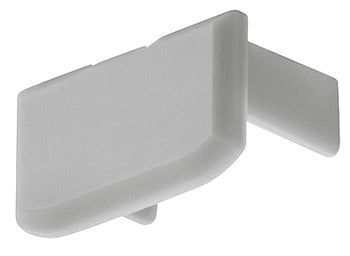

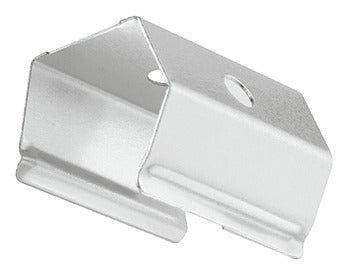

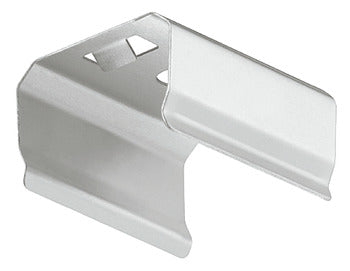

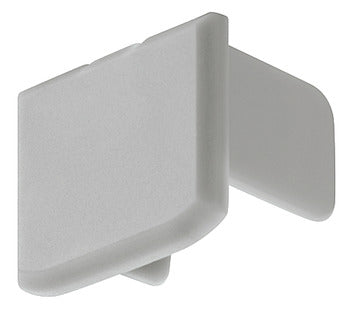

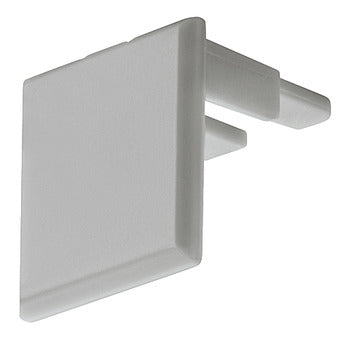

Clip connector and End cap

Cat. No.	833.72.852	833.72.853	833.74.832	833.74.833
Installation	-		Screw fixing	Screw fixing
Version	with cable outlet	with cable outlet	-
Material	Plastic	Plastic	Stainless Steel	Stainless Steel
Finish/colour	Silver/coloured	Silver/coloured	-	-
Suitable for	Diffuser, for push fittings	Diffuser, for push fittings	-	-
For profile	Surface mounting height 8.5mm	Surface mounting height 13mm	-	-
Packing	Pair	Pair	Pair	Pair

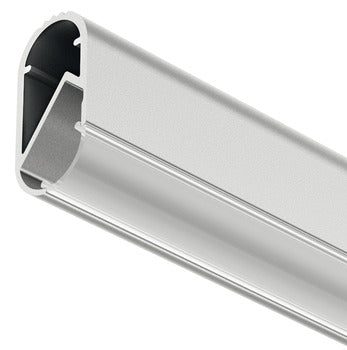

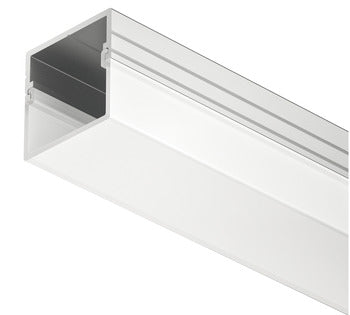

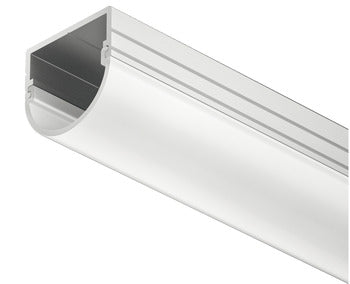

Cat. No.	833.74.813	833.74.814
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky, rectangular	Milky, round
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	18	17
Application	For mounting as downlight	For mounting as downlight
Supplied with	1 profile	1 profile

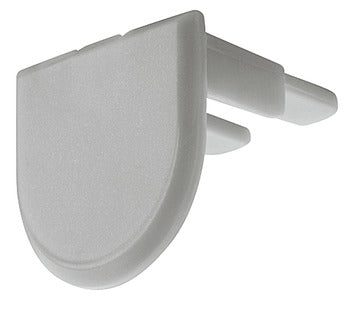

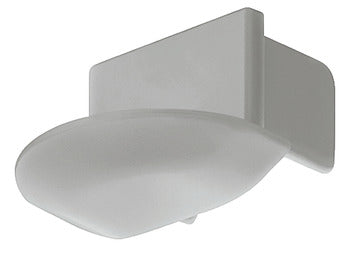

Cat No.	833.74.823	833.74.824	833.74.832	833.74.833
Installation	-		Screw fixing	Screw fixing
Version	Cable outlet, Rectangular	Cable outlet, Rounded	-
Material	Plastic	Plastic	Stainless Steel	Stainless Steel
Finish/colour	Silver/coloured	Silver/coloured	-	-
Suitable for	-	-	-	-
For profile	Surface mounting height 17/18mm	Surface mounting height 17/18mm	-	-

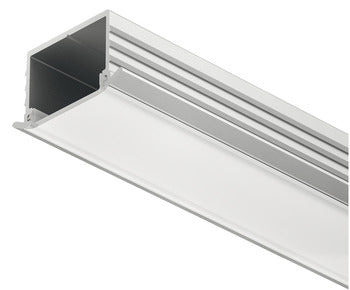

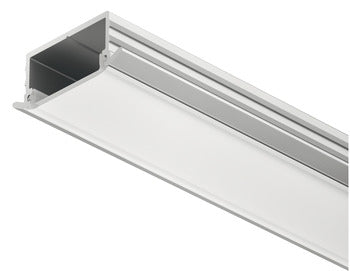

Cat. No.	833.72.844	833.74.814
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky	Frosted
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	8.5	8.5
Application	For recess mounting	For recess mounting
Supplied with	1 profile	1 profile

>>LED points are always visible
>>Not suitable for operation with LED 3028.

Cat. No.	833.72.846	833.72.847
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky,	Frosted
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	13	13
Application	For recess mounting	For mounting as downlight
Supplied with	1 profile	1 profile

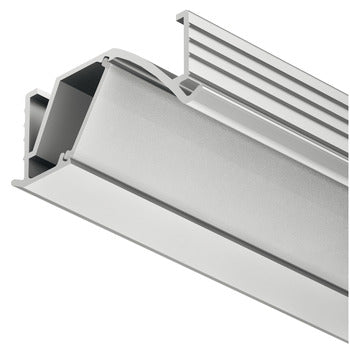

Cat. No.	833.72.848	833.72.849
Material	Aluminium	Aluminium
Finish/colour	Silver coloured anodized	Silver coloured anodized
Cover	Milky,	Frosted
Length (mm)	2,500	2,500
Width (mm)	18	18
Height (mm)	26	26
Application	For recess mounting 24 mm deep	For mounting as downlight 24 mm deep
Supplied with	1 profile	1 profile

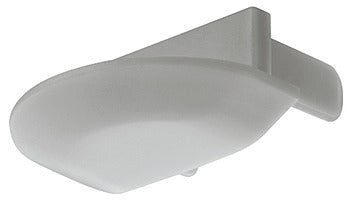

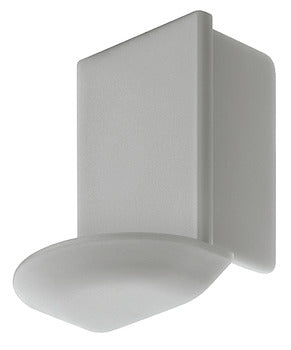

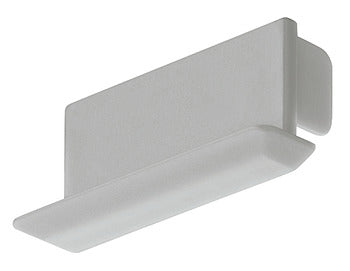

Cat. No.	833.72.855	833.72.854	833.72.856
Version	With cable outlet	With cable outlet	With cable outle
Material	Plastic	Plastic
Finish / Colour	Silver coloured	Silver coloured	Silver coloured
Suitable for	Diffuser, for push  fitting	Diffuser, for push  fitting	Protruding diffuser, for push fitting
For profile recess mounting depth	6.5 mm	11 mm	24 mm
Packing	Pair	Pair	Pair

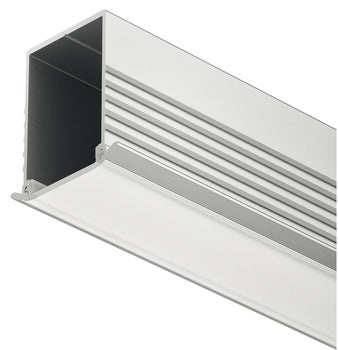

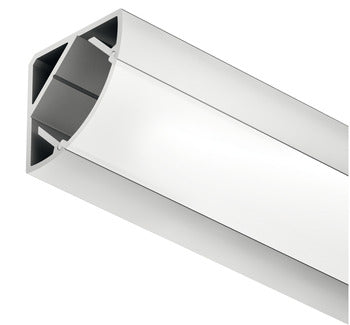

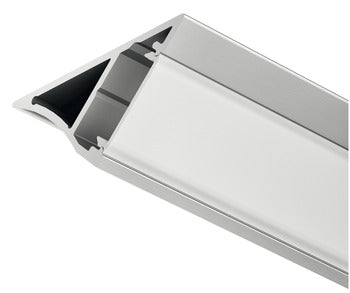

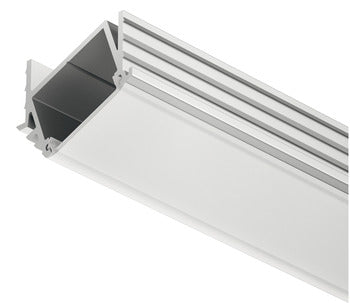

Cat. No.	833.72.850
Material	Aluminium
Finish/colour	Silver coloured anodized
Cover	Milky,
Length (mm)	2,500
Width (mm)	21
Height (mm)	19
Application	For recess mounting 11mm
Projection	8mm
Supplied with	1 profile

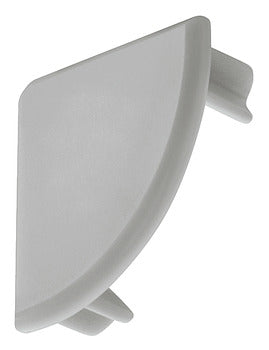

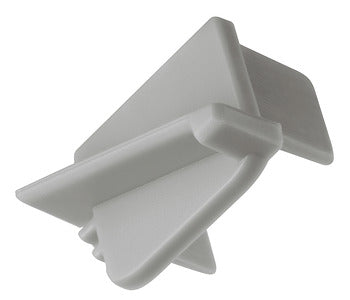

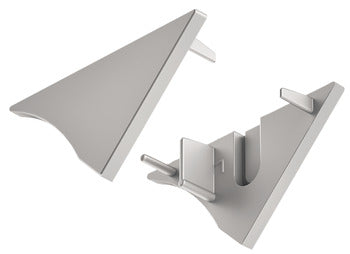

Cat. No.	833.72.855
Version	With cable outlet
Material	Plastic
Finish / Colour	Silver coloured
Suitable for	Diffuser, for push  fitting
For profile recess mounting depth	11 mm, angled
Packing	Pair
