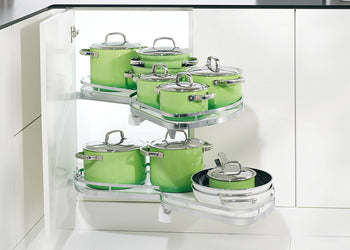

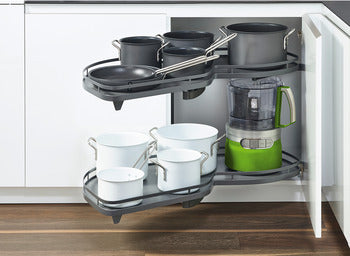

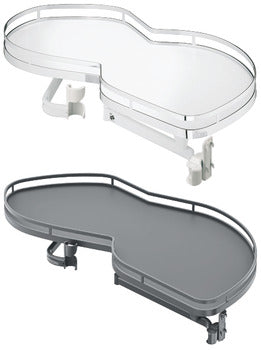

LeMans II corner unit, Arena Style
LeMans II corner unit, Arena Style
LeMans II corner unit, Arena Style
LeMans II corner unit, Arena Style
LeMans II corner unit, Arena Style

LeMans II corner unit, Arena Style

Regular price
₱39,141.01
Sale price
₱39,141.01
Tax included. Shipping calculated at checkout.

Feature

Trays extend completely out of the unit
Separately usable trays for optimum functionality
For corner units with 45, 50 and 60 cm doors
Also available as highboard version
85º Opening angle operation
ClickFixx installation and height adjustment of trays
LGA-certified

• Material: Steel
• Finish: Frame Chrome plated/Icewhite
• Version: Trays extend completely out of the unit, each tray slide independent
• Load capacity: 25 kg/shelf
• Internal carcase depth: Min. 500 mm
• Side panel thickness: 16 or 19 mm

Icewhite

Internal cabinet height (mm) / Version Number of trays Cat No.

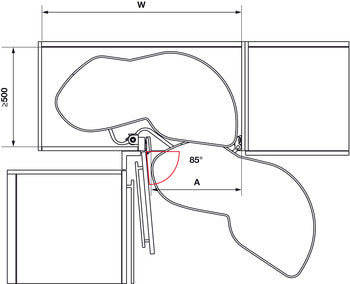

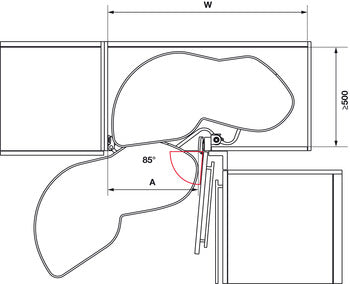

Inside cabinet width A = 411–418 mm/door width 450 mm,
W = Min. 800 mm
600–750 Right swivel 2 541.32.620
Fix 1,250 Right swivel 4 541.32.632
600–750 Left swivel 2 541.32.621
Fix 1,250 Left swivel 4 541.32.633



Anthracite

Inside cabinet width A = 411–418 mm/door width 450 mm,
W = Min. 800 mm
600–750 Right swivel 2 541.29.480
Fix 1,250 Right swivel 4 541.29.482
600–750 Left swivel 2 541.29.481
Fix 1,250 Left swivel 4 541.29.483
