Front Pull-out Basket with Runner, Stainless Steel 304

Front Pull-out Basket with Runner, Stainless Steel 304

Cabinet width mm
Features
  • Material of Basket: Stainless steel 304
  • Finish: Polished
  • Load capacity: 30 kg
  • Version: Runners and basket for front panel fixing
  • Type of pull-out: Full extension with self and soft closing
  • Min. internal cabinet depth: 500 mm (450 mm / 18” runners)

Supplied with:

  • 1 pc. basket
  • 1 pair runners
  • 1 pair runner supports
  • 1 pair runner covers
  • 1 set fixing screws

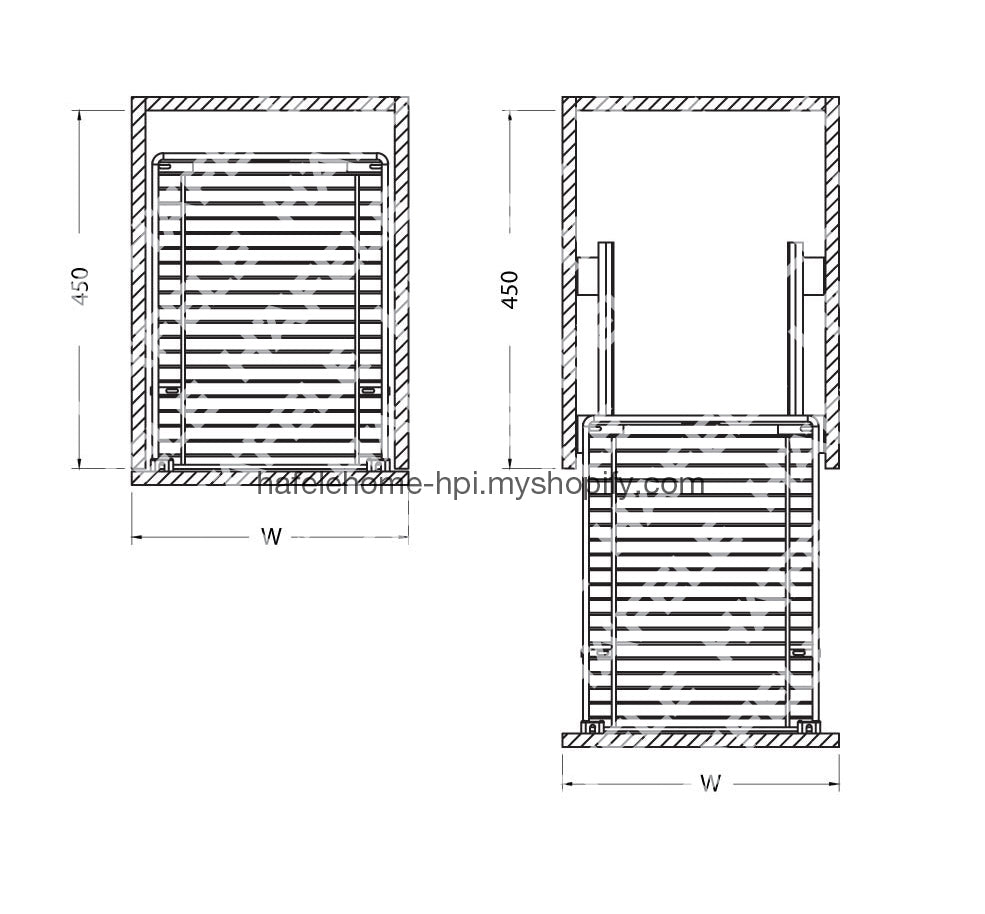

    Cabinet width
    mm    		 Basket Dim. (WxDxH) mm Cat. No.
    400 315 x 465 x 148 549.03.141
    450 365 x 465 x 148 549.03.142
    500 415 x 465 x 148 549.03.143
    600 515 x 465 x 148 549.03.144
    800 715 x 465 x 148 549.03.145
