Double-action spring hinge

Double-action spring hinge

Features:

Features:
• For flush timber frames
• 180 degrees swing action on
both sides
• With plastic washer for improve
swing action
• Handling: Non - handed

Technical specification:
• Max. door weight: 40 kg
• Height: 100 mm
• Knuckle diameter: 19 mm
• Maximum door thicknesses:
25 mm
• Max. door width: 750 mm
• Fixing screws

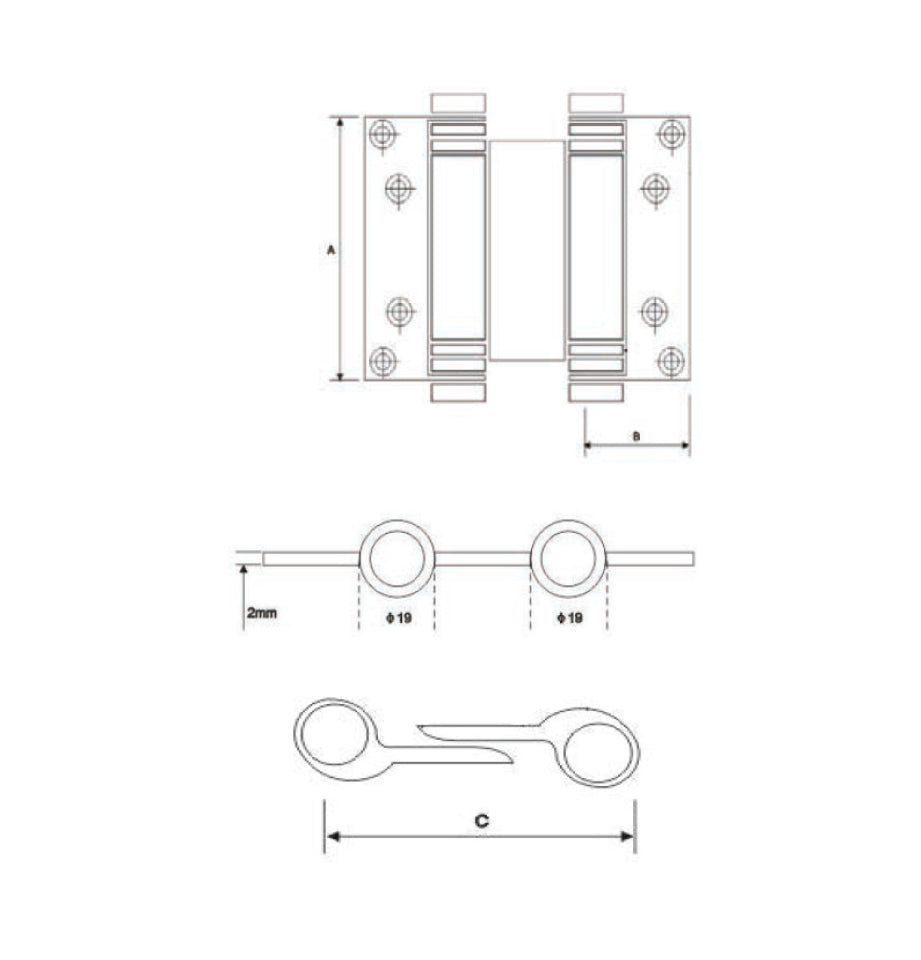

A: 102 B: 40 C: 54.5

    Material Cat. No.
    Stainless steel matt 927.97.020
