Floor Spring 90 kg, hold open angle 90 degrees

Floor Spring 90 kg, hold open angle 90 degrees

Product Specification
  • Door weight: 90 kg
  • Closing force size: EN2 - EN3
  • Cover plate material: Stainless steel Grade 304
  • Cover plate finish: Satin stainless steel (Matt)
  • Hold Open: 90 degrees
  • Maximum Opening Angle: 120 degrees
  • Durability test: 500,000
  • Max. Door width: 950 mm

    Functioning

    • Opening: Double action door
    • Closing speed: from 120 deg. to 15 deg.
    • Latching speed: 15 deg. to 0 deg.

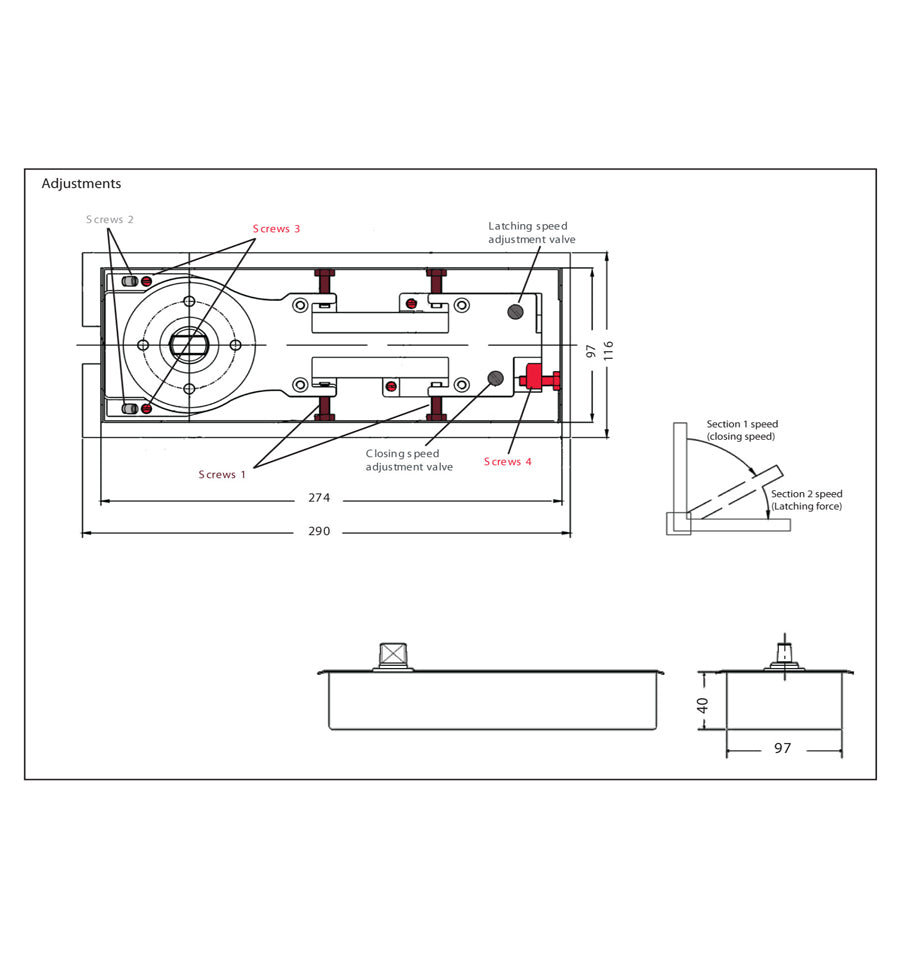

    Door leaf positioning and adjustment of closing speed

    • Adjust screws 2, 3 & 4 to align door parallel to the ground and to the top frame pivot

    • Adjut screw 1 to allow the door leaf to stop at the intended position
    • Both closing speed and latching speed decrease when the valves are turned clockwise whereas when the valves are turned anti-clockwise, both closing speed and latching speed increase.

    Note: Accessories for wood not included

    Description Cat. No.
    Floor spring 90 kg 932.79.260
