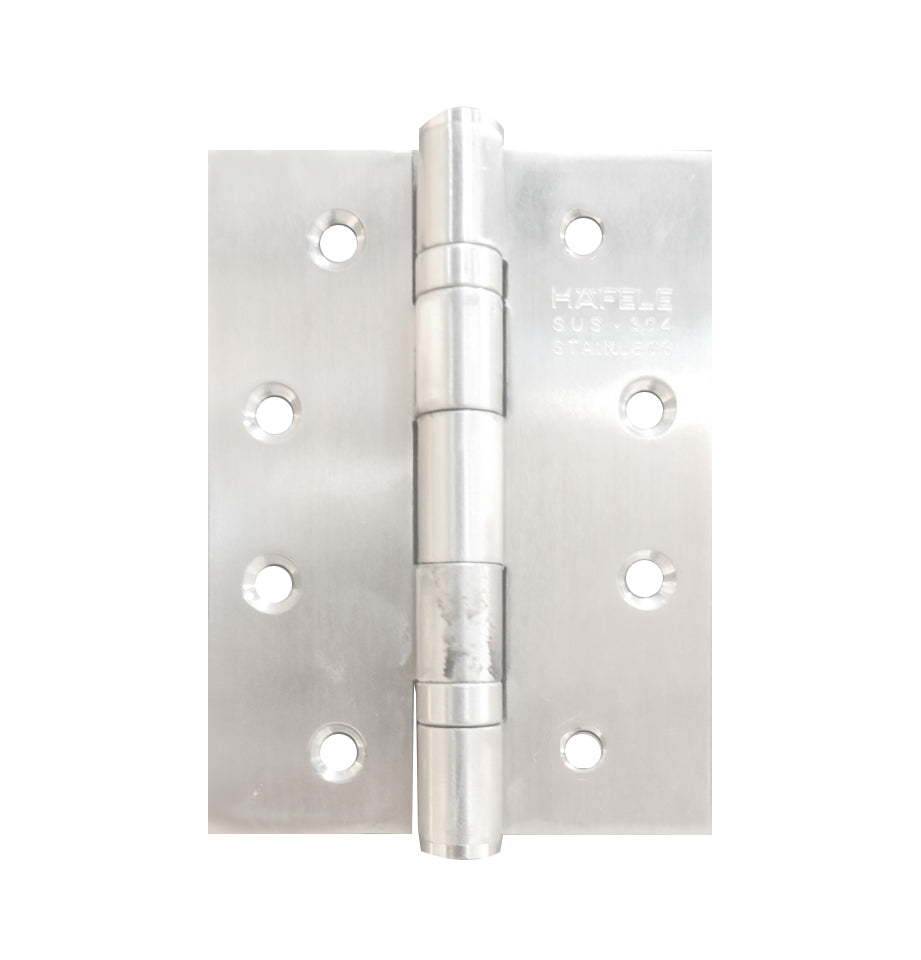

Butt Hinge 4" x 3" x 3mm

Features:

• For timber frames
• For flush door
• With fixed pin
• Knuckle with two ball bearings
• Suitable for DIN left and right hand

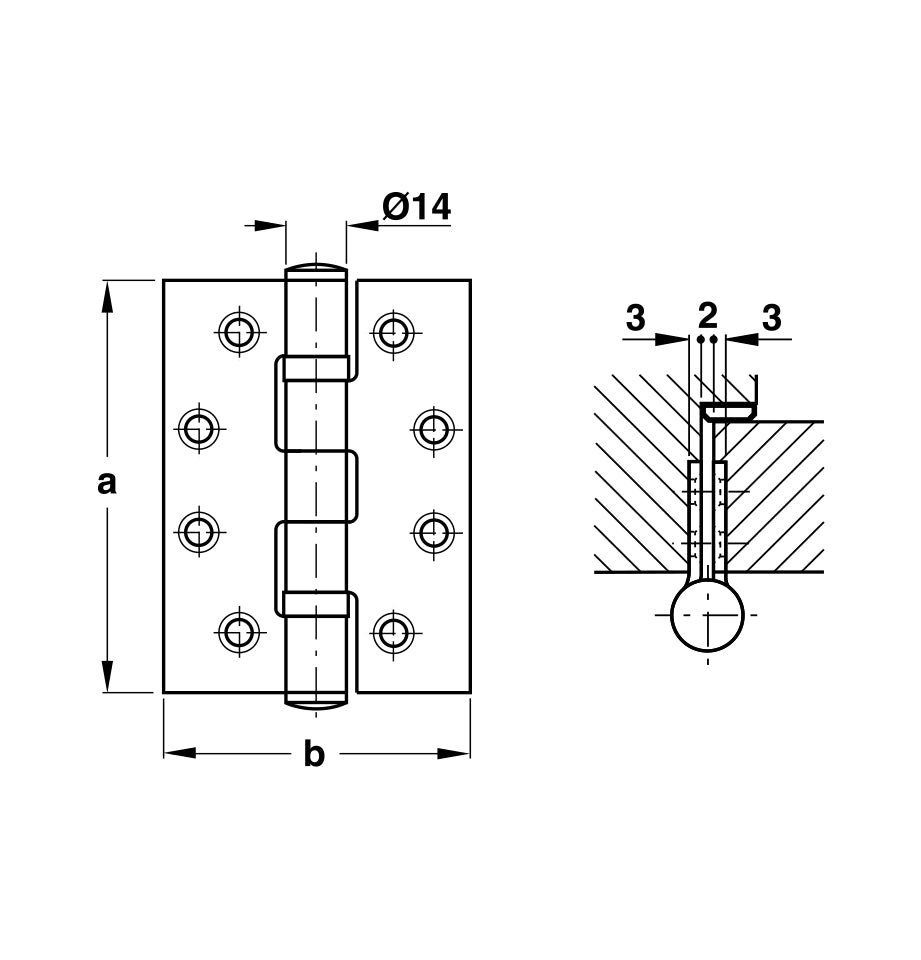

Technical data:
• Knuckle: Ø14 mm
• Material thickness: 3 mm
• Stainless steel (316)

Height in mm/inch 102 mm/4”
Width in mm/inch 76 mm/ 3”
Max. door weight with 3 hinges 70
