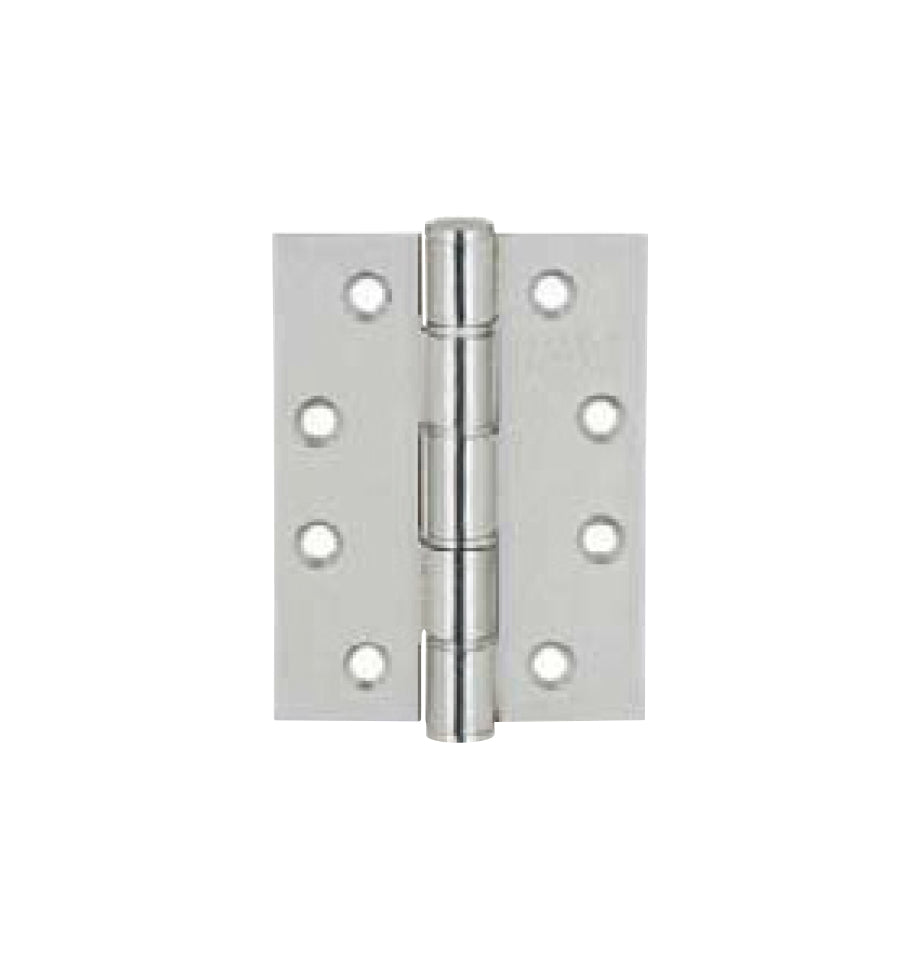

Butt Hinge 4" x 3" x 2mm
Butt Hinge 4" x 3" x 2mm
Features:
• For timber frames
• For flush door
• With fixed pin
• Knuckle with four washers
• Suitable for DIN left and right hand

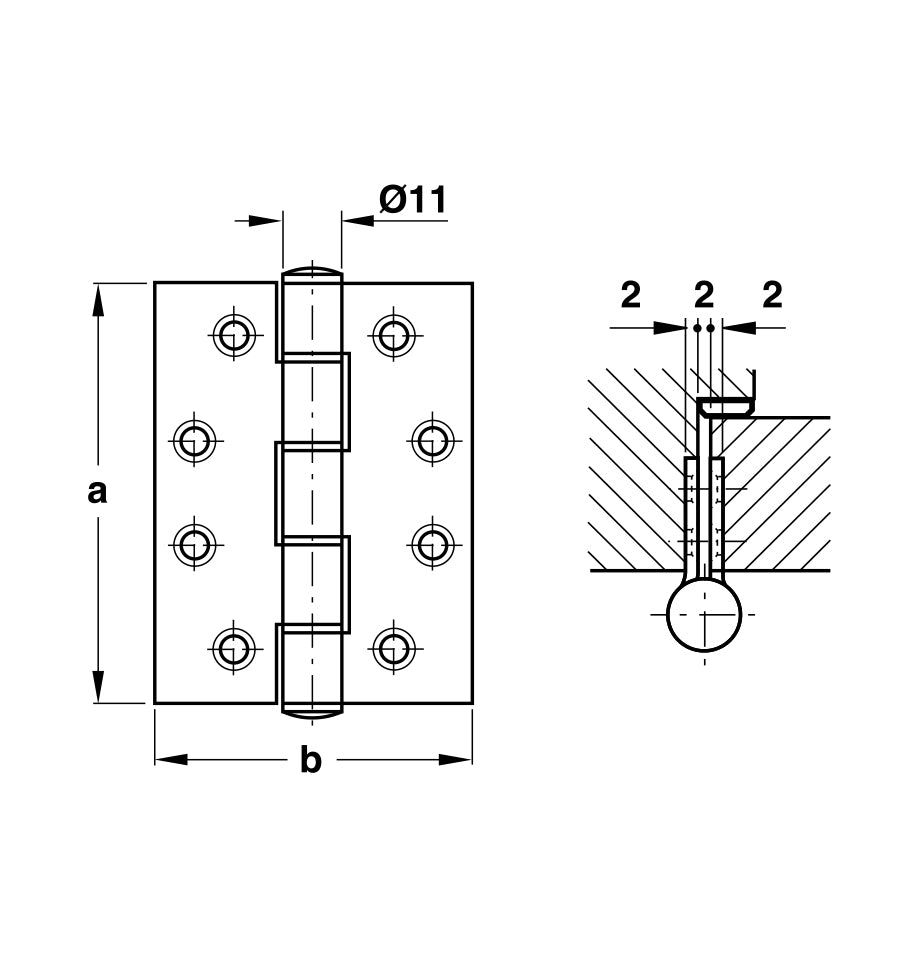

Technical Data:
• Knuckle: Ø 11 mm
• Material thickness: 2 mm
Maximum door weight with 3 hinges 40 kg
Finish | Cat. No. |
Stainless steel matt (304) | 921.17.138 |
