Features:
• For timber frames
• With fixed pin
• 16 mm knuckle with four ball bearings
• Suitable for DIN left and right hand
• Material thickness: 4mm

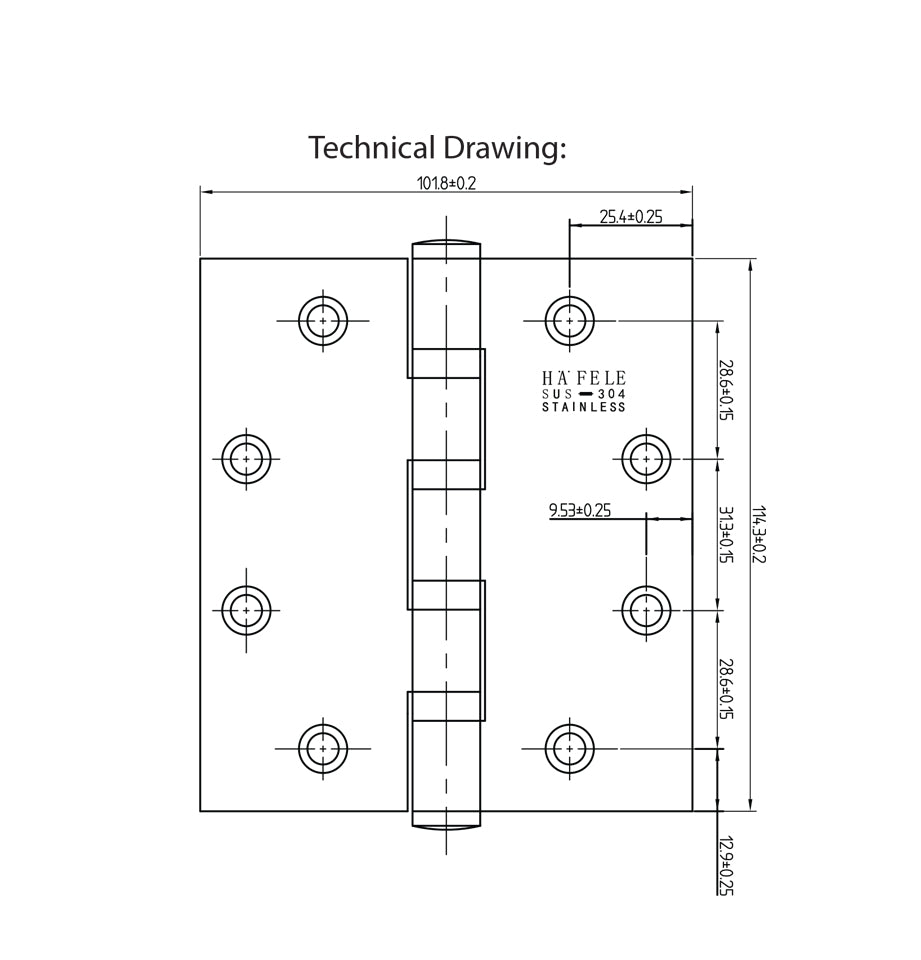

Height in mm/inch |
114 mm/4.5” |
Width in mm/inch |
102 mm /4” |
Max. door weight with 3 hinges |
90 kg |
Finish |
Cat. No. |
Stainless steel matt (304) |
926.34.903 |
