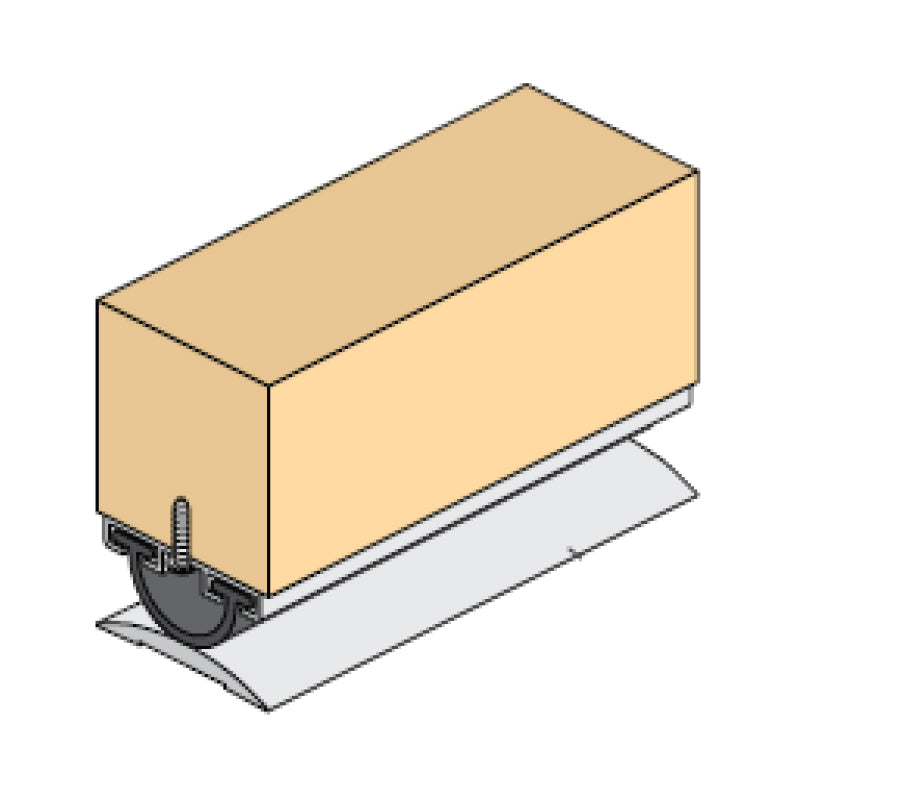

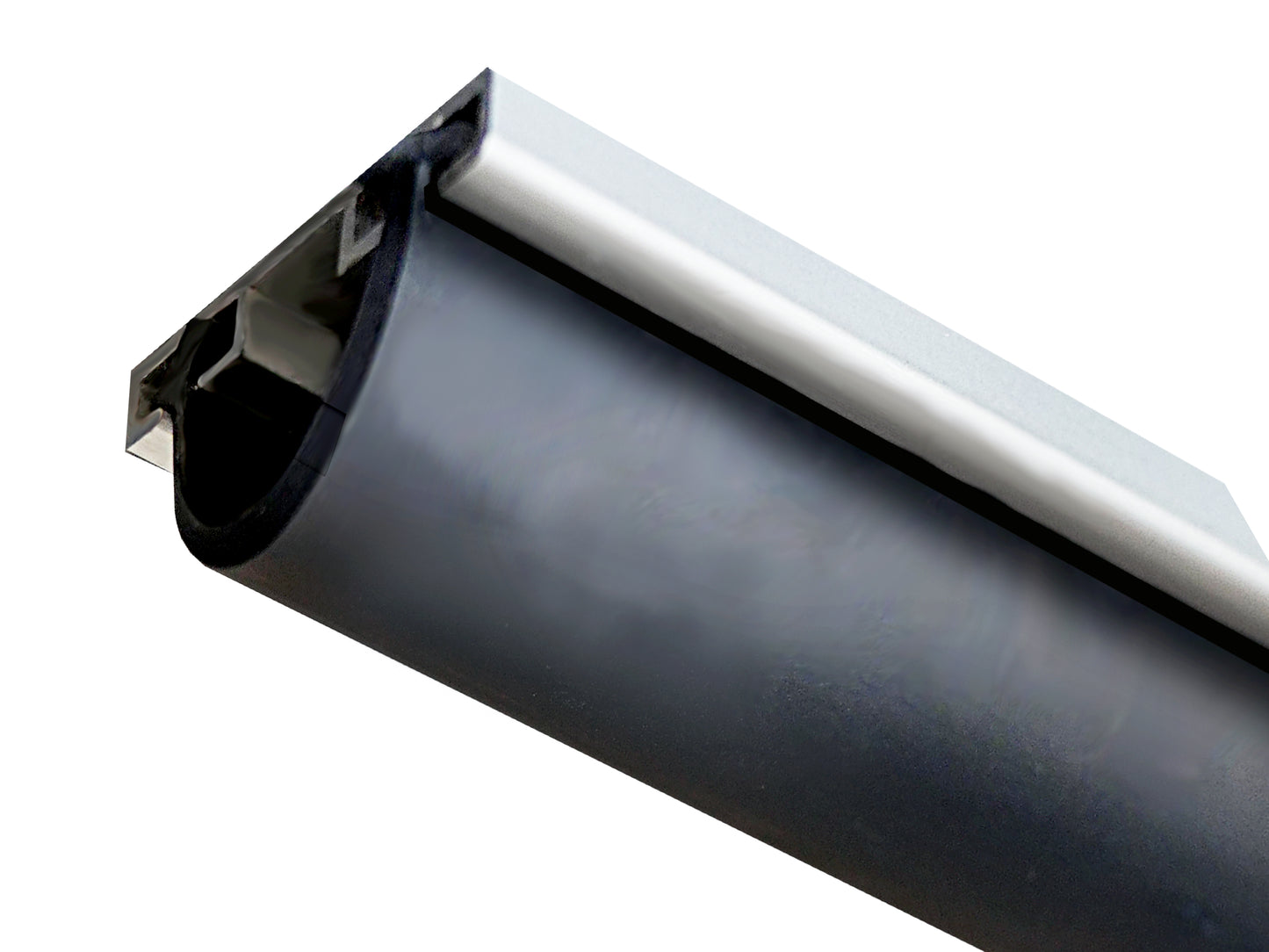

A heavy duty sweep type seal, with greater compression, which is fitted to the bottom of a door with concealed fasteners. The design of the seal does not allow adjustment so it should not be installed in situations where adjustability is required.
Location Door bottoms, meeting stiles, bumper strip.
Min/Max Gap User determined. Standard Finish Aluminium anodised 15 microns. Satin Clear
Seal Material EPDM (Black). Fixing Method Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.
Approvals Energy Complies with NCC BCA Pt. 3.12.3.3 & J3.4 for Building Sealing and Energy efficiency.
