Digital Door Lock DL7000

Digital Door Lock DL7000

Finish
Mortise Lock Type

Features

• 3 identification types:
- Up to 50 key cards/tags (Mifare and Rabit Cards)
- Up to 50 passwords (6-16 digits combination)
- Mechanical key override.
• Setting menu via OLED display screen.
• Digital touchpad design.
• Passage mode available.
• Random security coding function.
• Low battery power alert and intrusion warning function
Mischief and hacking prevention system.
Micro USB emergency power supply.
• Suitable for DIN left and DIN right.
• Suitable for door leaf thickness 35 - 50 mm.
• Dimension(WxHxD):
  External module: 64 x 283 x 27 mm
  Internal module: 64 x 283 x 27 mm
  Standard mortise lock: 80 x 140 x 24 mm (backset 60 mm)
  High security mortise lock: 80 x 240 x 24 mm (backset 60 mm)

Supplied with :
• 1 External and internal module
• 1 Set of Striking plate
• 1 Set of fixing material

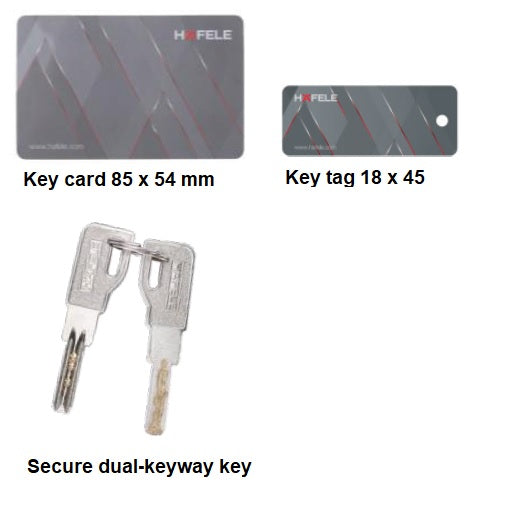

• 2 Key tags
• 2 Mechanical keys
• 1 User manual
• Installation guide and Installation template

Mortise Lock type Cat. No.
Standard 912.20.300
