Features
• Master key available upon request
• For flush timber or steel doors
• Suitable for DIN left and right hand
• Suitable for door panel thickness 35–45 mm
• With 6 pin cylinder on outside and inside
Technical data

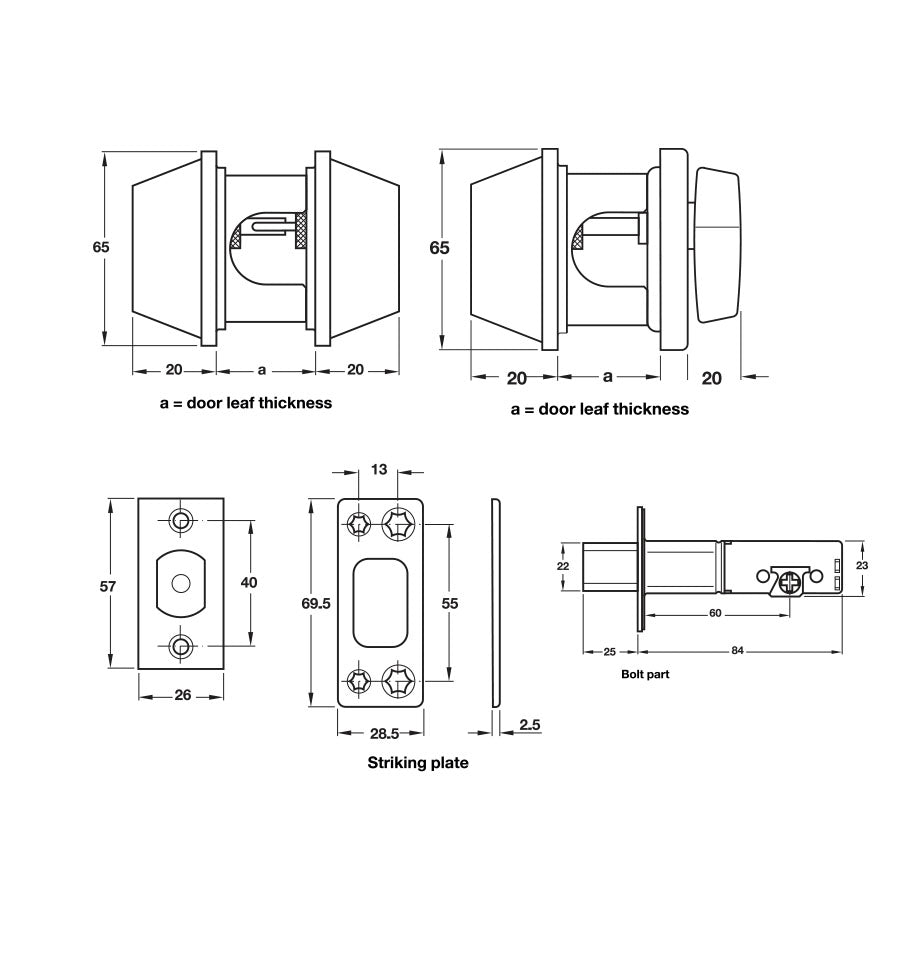

• Backset (a): 60 mm
Supplied with
1 Locking case with bolt part
1 Striking plate
3 Keys brass nickel plated
1 Set of fixing material
1 Set of installation instructions
| Finish/Single Cylinder
|
Cat. No. |
| Satin stainless steel |
489.10.124 |
| Antique Brass |
489.10.126 |
| Finish/Double Cylinder |
Cat. No. |
| Satin stainless steel |
489.10.121 |
| Antique Brass |
489.10.123 |
