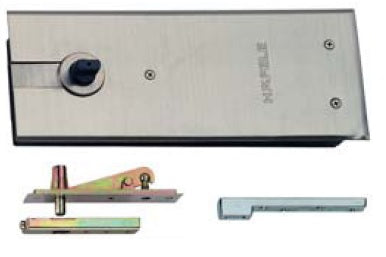

Floor Spring 105 kg
Floor Spring 105 kg
Area of application: For double action doors
Version: With hold-open function for door opening angle 90° (optional),
replaceable pivot, with top center set
Closing force: 3
Door weight: <105 kg
Door width: <950 mm
Opening angle: <130°
Material: Cover plate: Stainless steel
Finish: Cover plate: Satin finish
Mounting: Suitable for DIN left hand, DIN right hand and double action doors
Standard: Certified in compliance with EN 1154:1996/A1:2002
Class: 3 | 8 | 3| 0/1 | 1 | 3
Description | Article no. |
With hold-open function at 90° |
932.84.030 |
