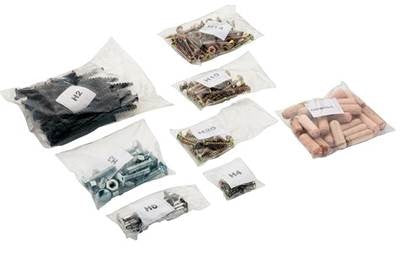

Häfele Set of screws for Tavoletto Bed/desk combi fitting
Häfele Set of screws for Tavoletto Bed/desk combi fitting
|
900 x 2000 mm (W x L) |
Fixing material for 1 set | 271.97.395 |
|
1400 x 2000 mm (W x L) |
Fixing material for 1 set | 271.97.396 |
Securing bracket
For built-in foldaway beds(Sold separately)
> Area of application: Anti-tilt facility for foldaway beds
> Material: Steel
> Installation: For screw fixing
> Fixing material supplied
| Finish/colour | Cat. No. |
| Powder coated, graphite black, RAL 9011 | 271.98.100 |
Packing: 2 pieces
Bedroom Fittings Built-in foldaway beds(Sold separately)
Space saving, ideal for use as guest bed, in students'
hostels and hospitals
| Construction recommendation | Mattress size mm 900 x 2000 |
1Mattress size mm 400 x 2000 |
| A | 1388 | 1780 |
| B | 1115 | 1598 |
| C | 1086 | 1188 |
| D | 944 | 1040 |
| E | 2160 | 2140 |
| F | 766 | 769 |
|
Max. mattress height With slatted frame |
214 | 229 |
|
Max. mattress height With resilient slats |
263 | 278 |
|
Space above desk in bed position |
530 | 551 |
The construction dimensions apply to side panel thickness of 19 mm.
Bed position Desk position
Note:
CAD data and installation instructions for construction are available
for downloading.
The specifications of the CAD data must be adhered to. Only then
full functionality of the fitting is given.
Wooden and steel elements must be provided on site.
Order reference
tipping in accordance with EN 1129. Please
order securing brackets separately. Ensure
that the surface is suitable for attaching the
securing brackets.
> Colour: Black
> Safety tested by the LGA in compliance with DIN EN 1129
|
For mattress size (W x L)mm |
Supplied with | Cat. No. |
|
900 x 2000 mm (W x L) |
1 fitting set complete for 1 piece of furniture, without fixing material |
271.97.300 |
|
1400 x 2000 mm (W x L) |
1 fitting set complete for 1 piece of furniture, without fixing material |
271.97.301 |
