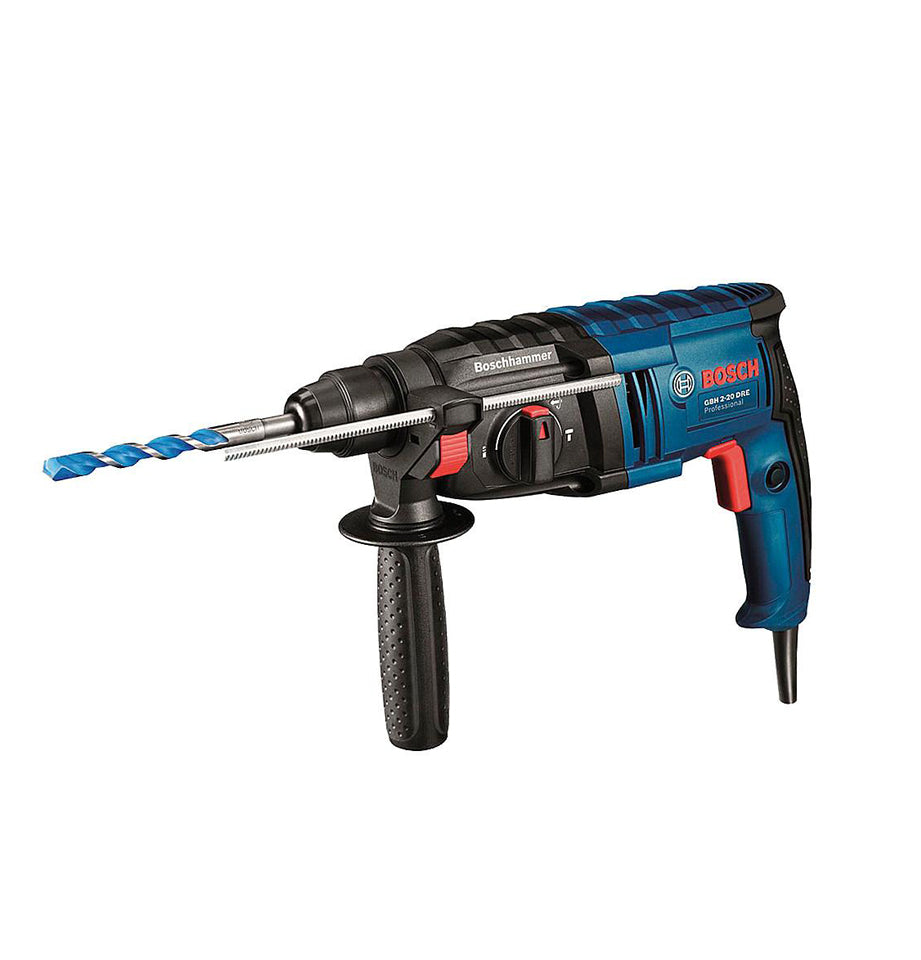

SDS Plus Hammer (GBH 2-20 DRE)
SDS Plus Hammer (GBH 2-20 DRE)
SDS Plus Hammer (GBH 2-20 DRE)
Cat No: 001.73.554
SDS PLUS HAMMER, Power input 600 W, concrete 20 mm, load speed 0-1,400 rpm, impact rate 0-4,400 bpm, impact energy 1.7 J, weight 2.3 kg
Technical data
| Additional data | |
|---|---|
| Rated input power* | 600 W |
| Impact energy* | 0 - 1.7 J |
| Impact rate at rated speed | 0 – 4,400 bpm |
| Rated speed | 0 – 1,400 rpm |
| Weight | 2.3 kg |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 20 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Power and speed in a compact combination
- Robust block - pot, stacked construction for superior reliability and durability
- Enhanced versatility for common chiselling tasks
- Compact and 2.3 kg for comfortable and handy operation. Suitable for overhead applications
