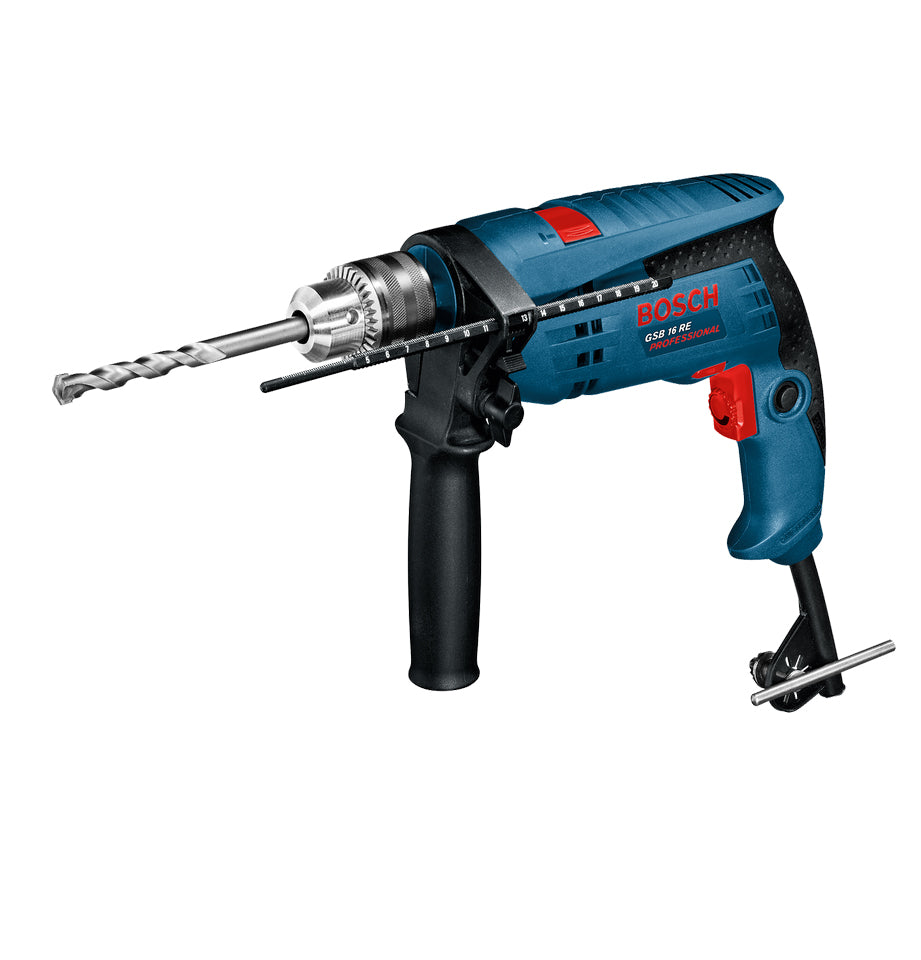

Impact drill 750W GSB 16
Impact drill 750W GSB 16
Impact drill 750W
GSB 16 RE Wrap
Cat No: 001.73.000
Power input: 750 W; in concrete: 16 mm / 3,250 rpm, reversible, electronic
Technical data
| Additional data | |
|---|---|
| Rated input power* | 750 W |
| Weight | 1.8 kg |
| No-load speed, 1st gear | 0 – 3,250 rpm |
| Rated torque | 2.1 Nm |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Tool dimensions (width) | 70 mm |
| Tool dimensions (length) | 270 mm |
| Tool dimensions (height) | 190 mm |
| Impact rate at no-load speed | 0 – 48,500 bpm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete* | 16 mm |
| Drilling diameter in wood* | 25 mm |
| Drilling diameter in steel | 12 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Increased performance, Better efficiency
- Robust pot gear housing and clamp shell motor housing for tough jobsite conditions
- Powerful 750 W motor to suit versatile professional needs
- Compact ergonomic design for fatigue-free usage
