Threshold Plate, Satin Clear 1000 mm

Threshold Plate, Satin Clear 1000 mm

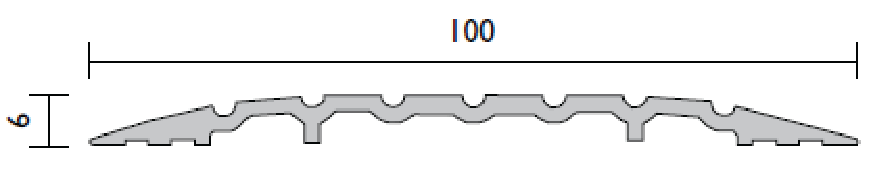

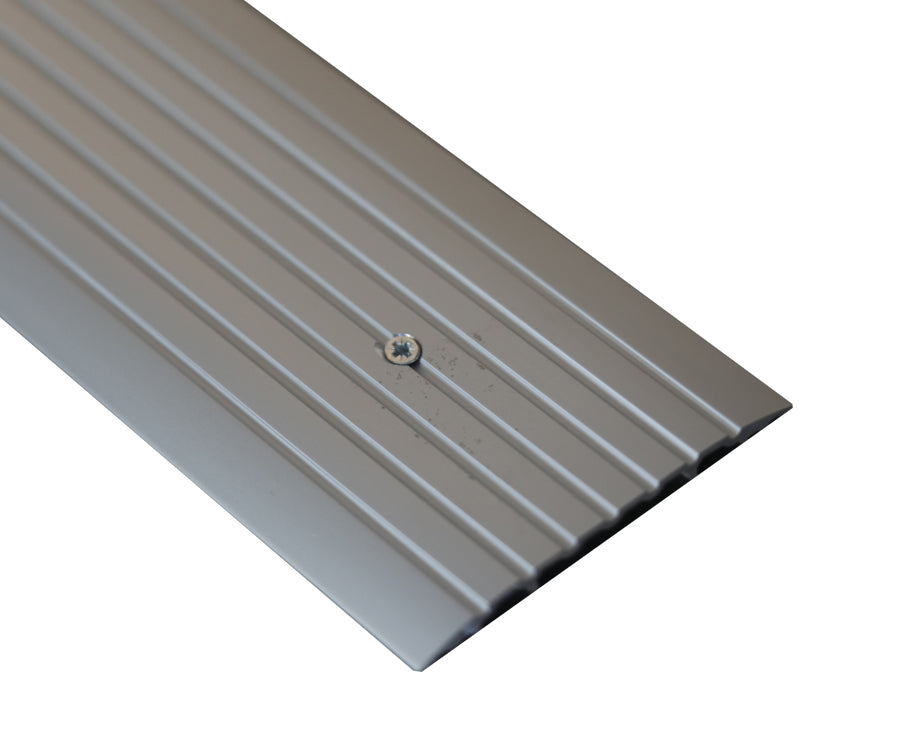

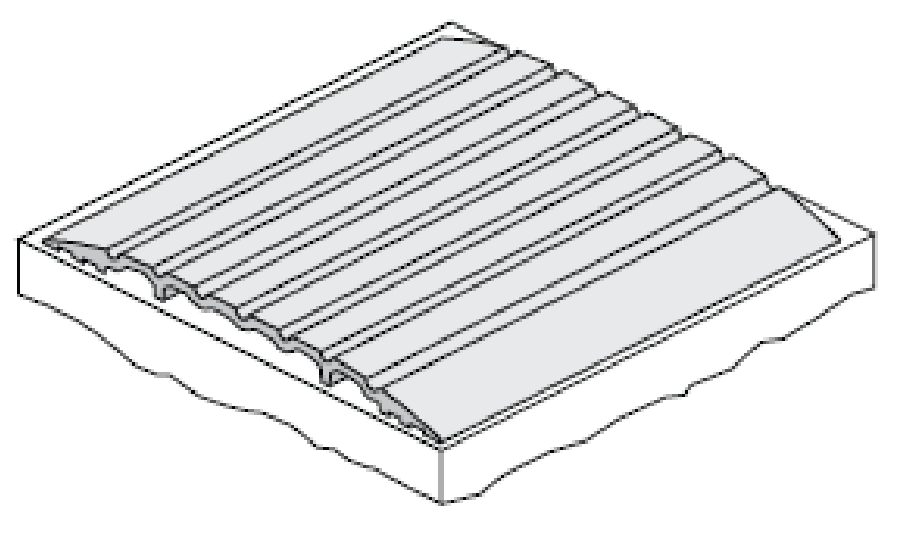

A low profile threshold plate used in conjunction with door bottom seals to prevent rain, draught and smoke infiltration.

Standard finish aluminium anodised 25 microns.

Satin clear (Silver).

Fixing method Zinc plated, cross recess head CSK S.T. screws of the appropriate size and colour are supplied, or it can be fastened with adhesive.

Fire AUS/NZ: Meets NCC BCA

Spec. C3. 4 for fire doors, Approved to BS 476 Pt. 20 & 22 (similar to BS EN 1634-1). Approved on fire rated doors up to FRL & FRR-/240/30 and FD180

Access & Mobility AUS/NZ:

Conforms to NCC BCA D3 D3.2.

Standards AS 1428.1 and NZ BC

Compliance Doc. DI/ASI 1.3.2.

UK/EU: Conforms to Approved Document M.


    Finish Cat No.
    Satin Clear Threshold 1000MM 950.35.160
