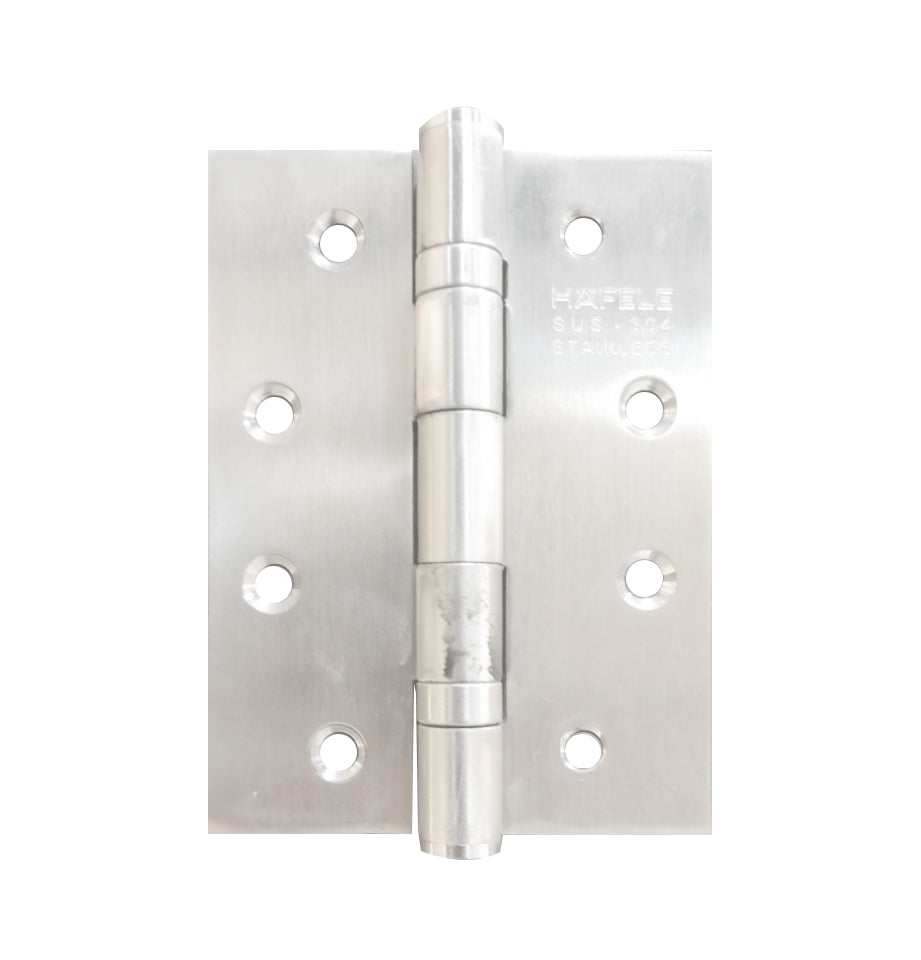

Butt Hinge 4" x 3" x 2.5mm

Features:

• For timber frames
• For flush door
• With fixed pin
• Knuckle with two ball bearings
• Suitable for DIN left and right hand

Technical Data:

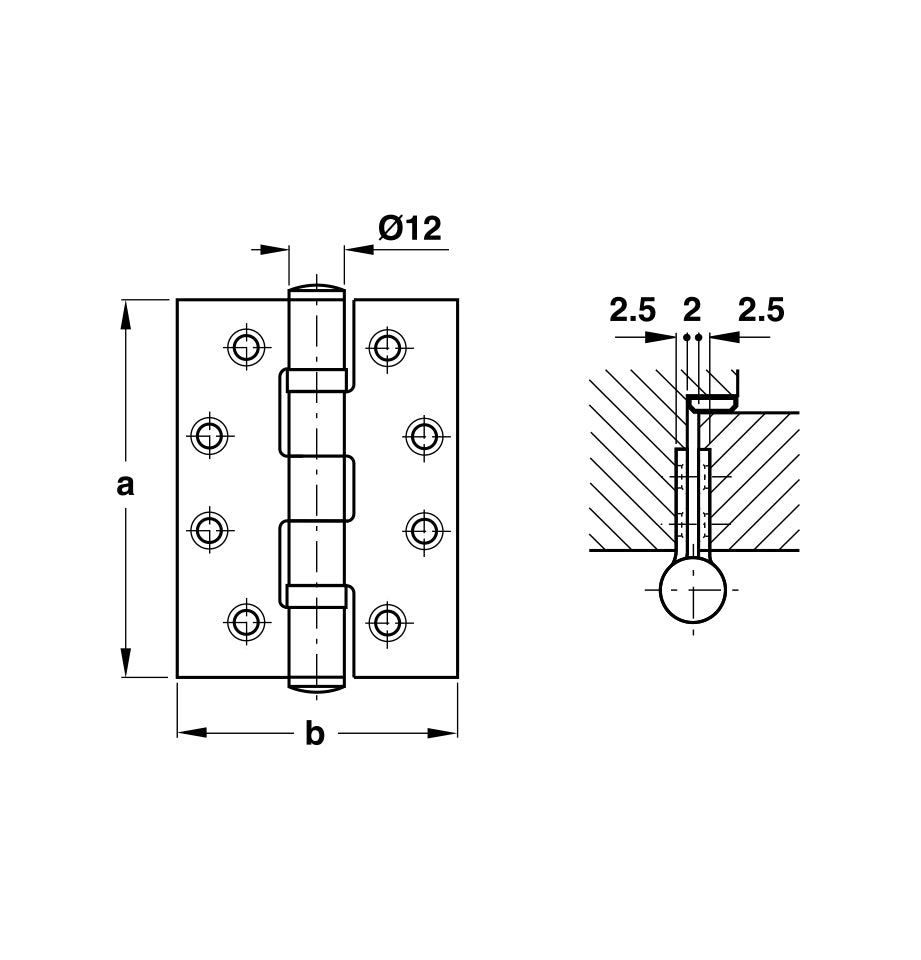

• Knuckle: Ø 12 mm
• Material thickness: 2.5 mm

Height in mm/inch 102 mm/4”
Width in mm/inch 76 mm/3”
Max. door weight with 3 hinges 55 kg
