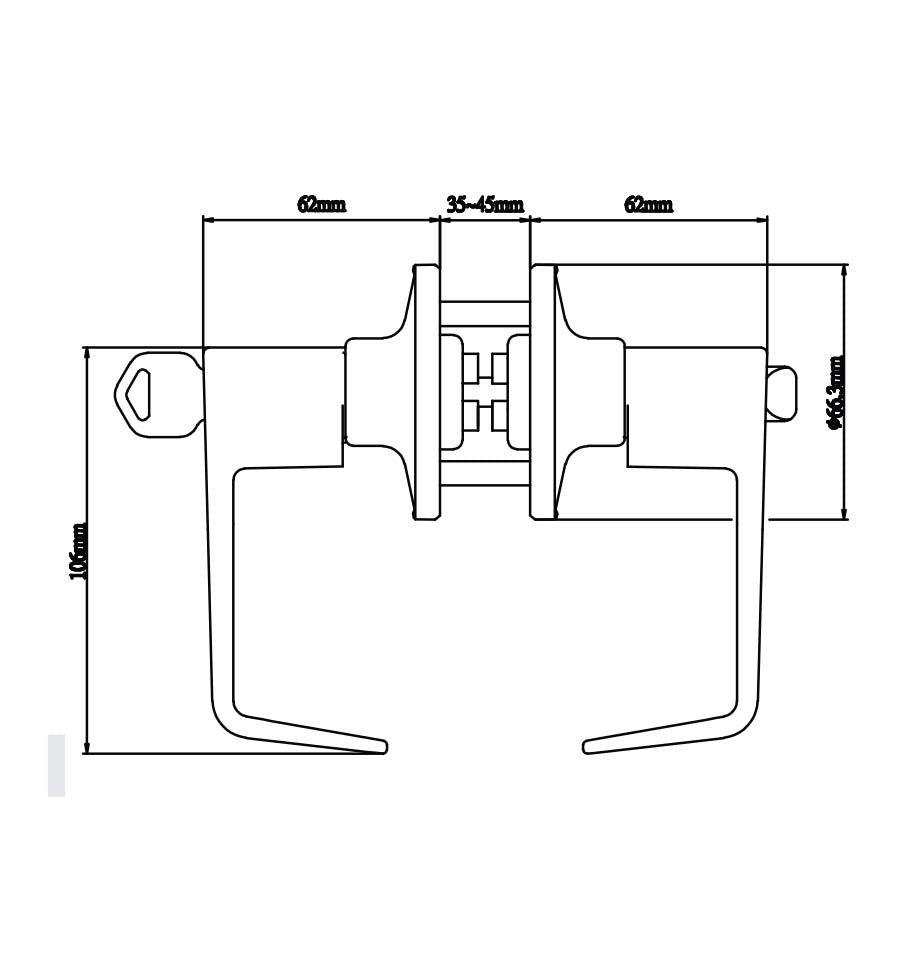

Tubular Lever Lockset ANSI Grade 3

Tubular Lever Lockset ANSI Grade 3

Size

Features

• ANSI Grade 3 Tubular Lever Lockset
• Satin Nickel finish
• UL listed
• Keyway: 5 pins brass cylinder with schlage C keyway, 2 keys, KD
• Suitable for door leaf thickness 35-45 mm
• Rose diameter: 66.3 mm
• Backset: 60/70 mm adjustable latch with fire-rated
Supplied with
• 1 Lever lockset
• 1 Striking plate
• 1 Assembly key
• 1 Set of fixing material
• Installation manual

Function  Finish Cat. No.
Entrance Zinc Nickel Matt 489.10.692
Privacy Zinc Nickel Matt 489.10.693
Passage Zinc Nickel Matt 489.10.694
