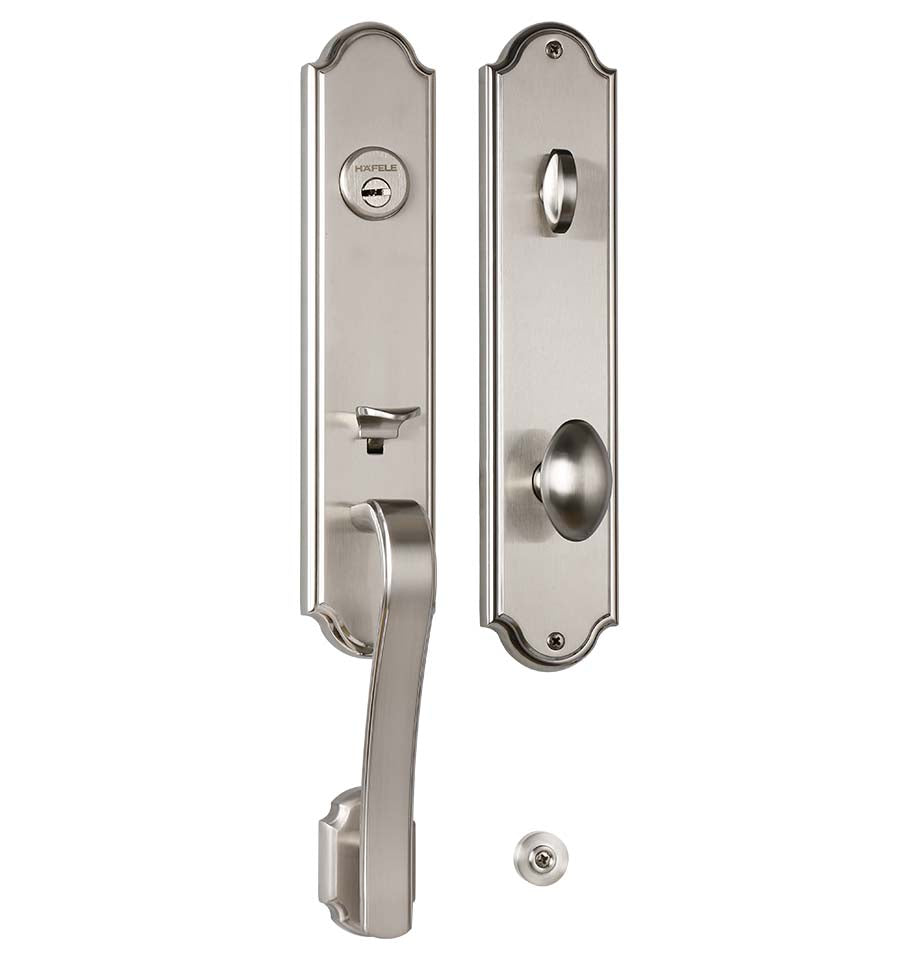

Grip handle set Standard Duty

Grip handle set Standard Duty

Features

Main Specifications
• Apply to all kinds of wooden doors and metal doors
• Tubular type
• Heavy-duty mechanical under correct installation and usage
• Easy installation, instruction manual included
Deadbolt
• Solid brass for bolt tounge
• Reinforced with a big & hardened steel insert, anti-saw,
higher security.
• High quality steel for casing, precise mechanism inside,
strong and stable.
• Solid stainless steel for forend and strike plate.
• Backset: 60mm
Latch
• Solid brass for latch tongue.
• High quality steel for casing, precise mechanism inside,
strong and stable.
• Solid stainless steel for forend and strike plate.

Cylinder
• High-tech solid brass cylinder
• Machined by precise CNC (Computer Numeric Control)
equipments according to the most strict QA standard
• Keyway: Double-Row-Pin technology, 10 pins,
pin-combinations are much more than international standard,
extremely secure.
• Construction key function available: Each cylinder with 5 pcs
owners key + 1 pc construction key, all keys are made by
solid brass, thickness 2.5mm
• 400,000 cycle test
Supplied with:
• 1 front faceplate with grip handle
• 1 back faceplate with turn
• 1 Profile cylinder
• 1 piece of latch and bolt
• 1 set striking plate
• 1 Set of fixing material
• 1 Set of installation instruction (manual+template)
• 5 pcs. owner key (Double-row-pin keyway)
• 1 pc. construction key (Double-row-pin keyway)

 Finish Cat. No.
Satin Nickel / Polished Nickel 911.64.596
