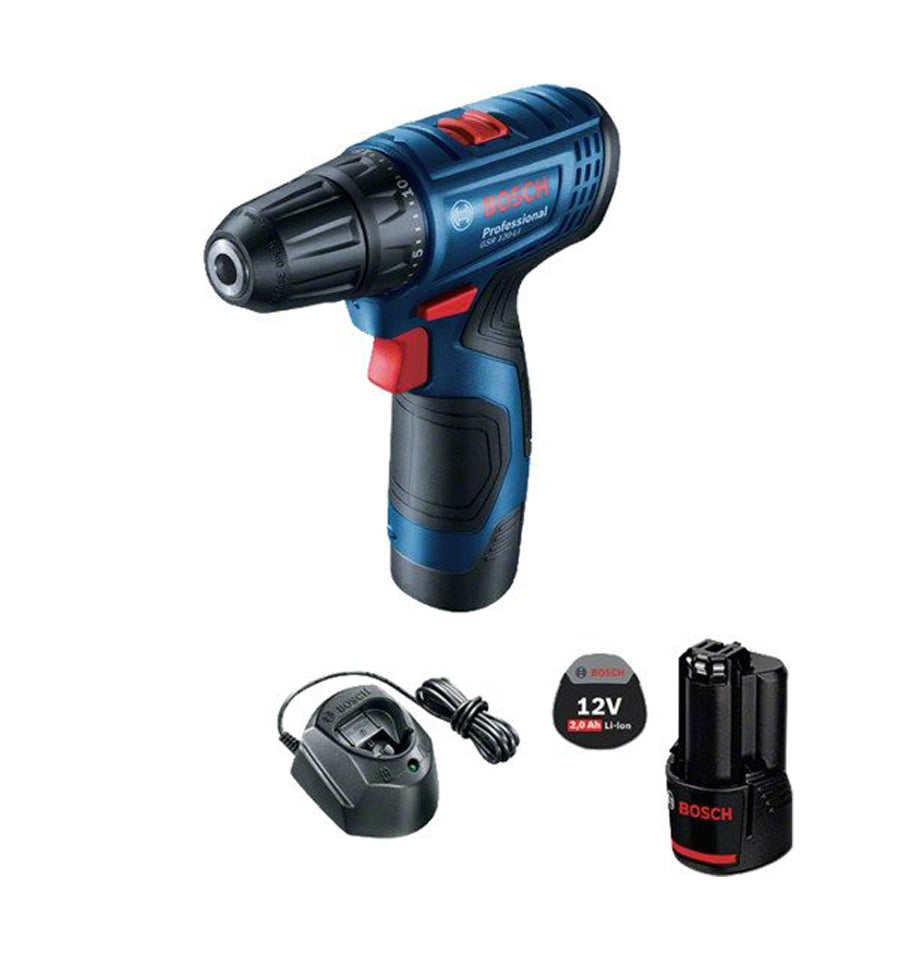

Cordless drill 12V
Cordless drill 12V
Cordless drill 12 V
0 601 9F7 0K0/ 06019G80K0
Cat No: 001.61.200
Power input: 12V
Power input: 12V / 1.5 Ah; 0-430 / 1,600 rpm - 2 SPEED; max screw diameter: 7 mm; 2x insert pack battery/1x charger
Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Torque (soft/hard/max.) | 14/30/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 400 / 0 – 1,500 rpm |
| Battery type | Lithium-ion |
| Chuck capacity, min./max. | 1.5 / 10 mm |
| Weight excl. battery* | 0.8 kg |
| Torque settings | 20+1 |
| Tool holder | Three-jaw chuck |
| Screw diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 20 mm |
| Max. drilling diameter in steel | 10 mm |
| Drilling diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 20 mm |
| Max. drilling diameter in steel | 10 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 0.7 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 0.4 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
High-powered 2-in-1 for less
- Power and durability within reach for screw driving and drilling
- 2-speed gearbox enables high productivity and excellent torque
- Electronic Cell Protection for longer battery life and more durability
