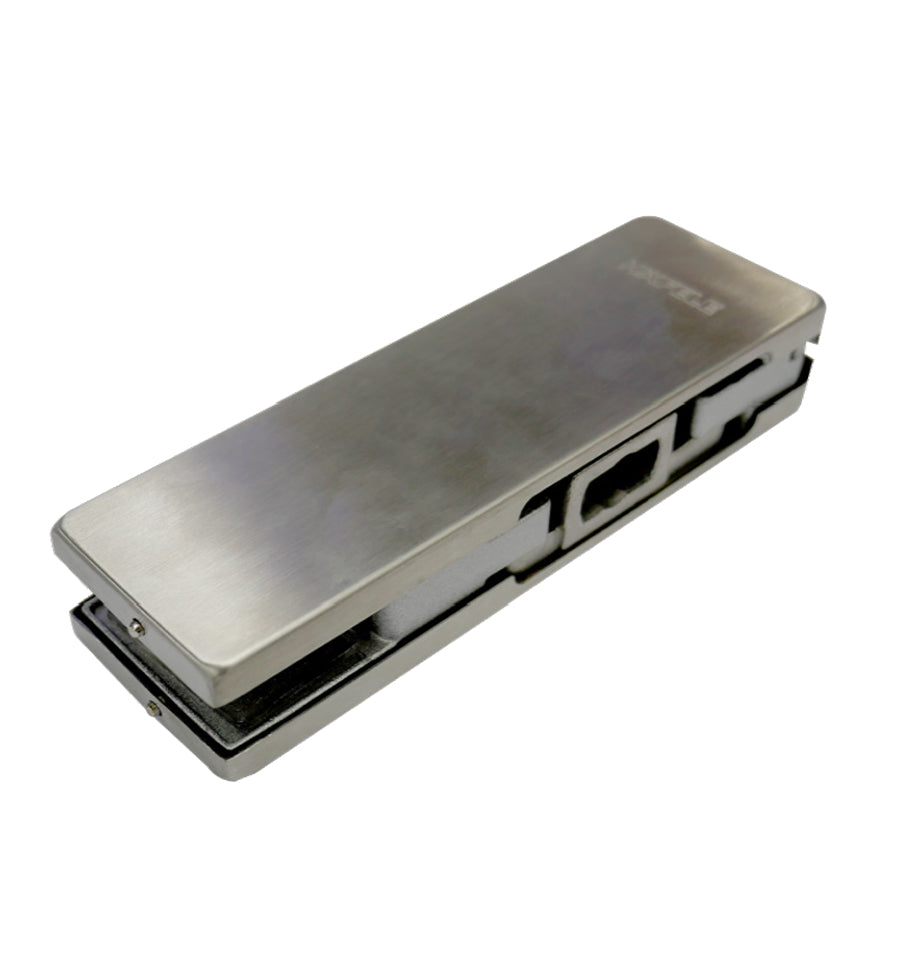

Bottom Patch Fittings

Bottom Patch Fittings


  • For glass thickness 10-12 mm
  • Suitable for DIN left hand and DIN right hand
  • For double action doors

Technical data

  • Max. door weight: 80 kg
  • Max. door leaf width: 1,100 mm


  • Clamp fixing, concealed, with hexagon socket screws

Supplied with
1 bottom patch fitting for double action door
2 allen keys SW 2 and 5
1 additional gasket for glass thickness 10mm

 Finish Cat. No.
Stainless Steel Matt 981.50.010
