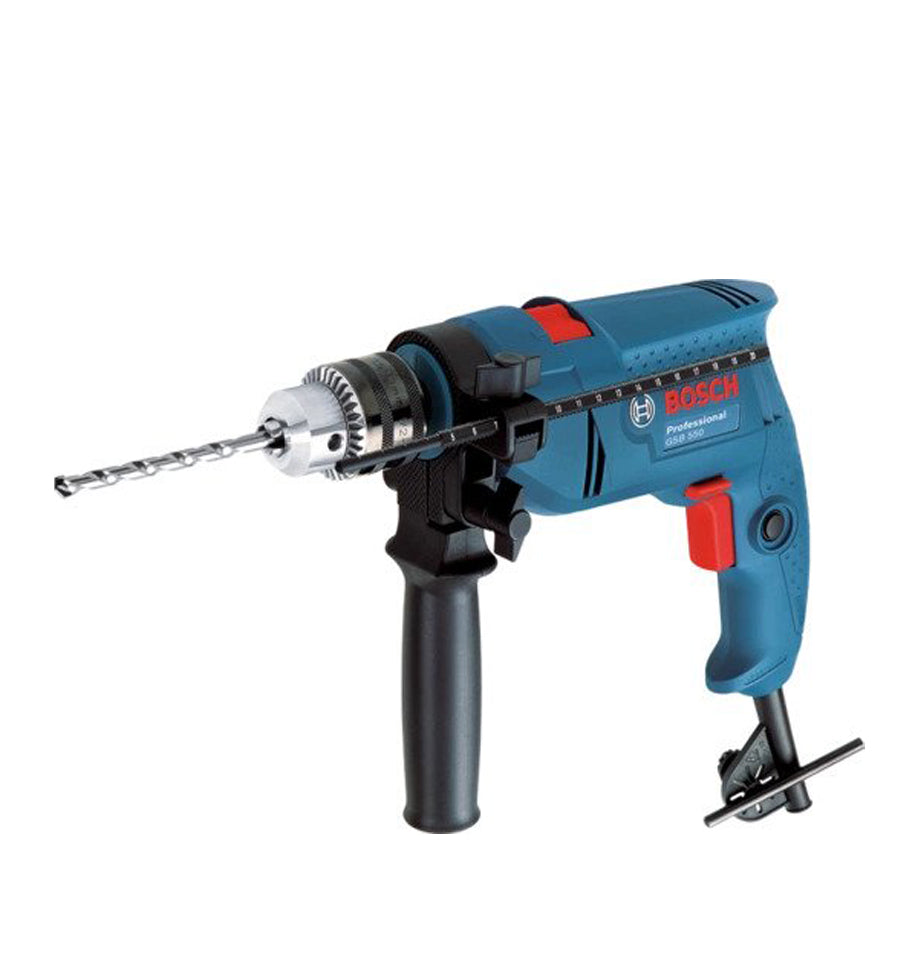

Impact drill 550W
Impact drill 550W
Impact drill 550W
0 601 1A1 5K0
Cat No: 001.73.001
Power input: 550 W; in concrete: 13 mm / 2,800 rpm, reversible, electronic in carton box
Technical data
| Additional data | |
|---|---|
| Rated input power* | 550 W |
| Weight | 1.8 kg |
| No-load speed, 1st gear | 0 – 2,800 rpm |
| Power output | 270 W |
| Rated torque | 1.5 Nm |
| Drill spindle connecting thread | 43 |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Tool dimensions (width) | 65.5 mm |
| Tool dimensions (length) | 262 mm |
| Tool dimensions (height) | 253 mm |
| Impact rate at no-load speed | 0 – 41,800 bpm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 13 mm |
| Drilling diameter in wood* | 25 mm |
| Drilling diameter in steel | 10 mm |
| Drilling diameter in masonry* | 13 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Powerful and reliable power tool
- Powerful 550 watt motor
- 13 mm keyed chuck, auxiliary handle and depth stop
- Fully ball-bearing-mounted construction for a long lifetime
Advantages
New Ergonomically designed drill for tradesmen
- Slim and compact design > ease of use in narrow space
- Effective “in-line” use grip
- Powerful 350W motor > for robust application needs
