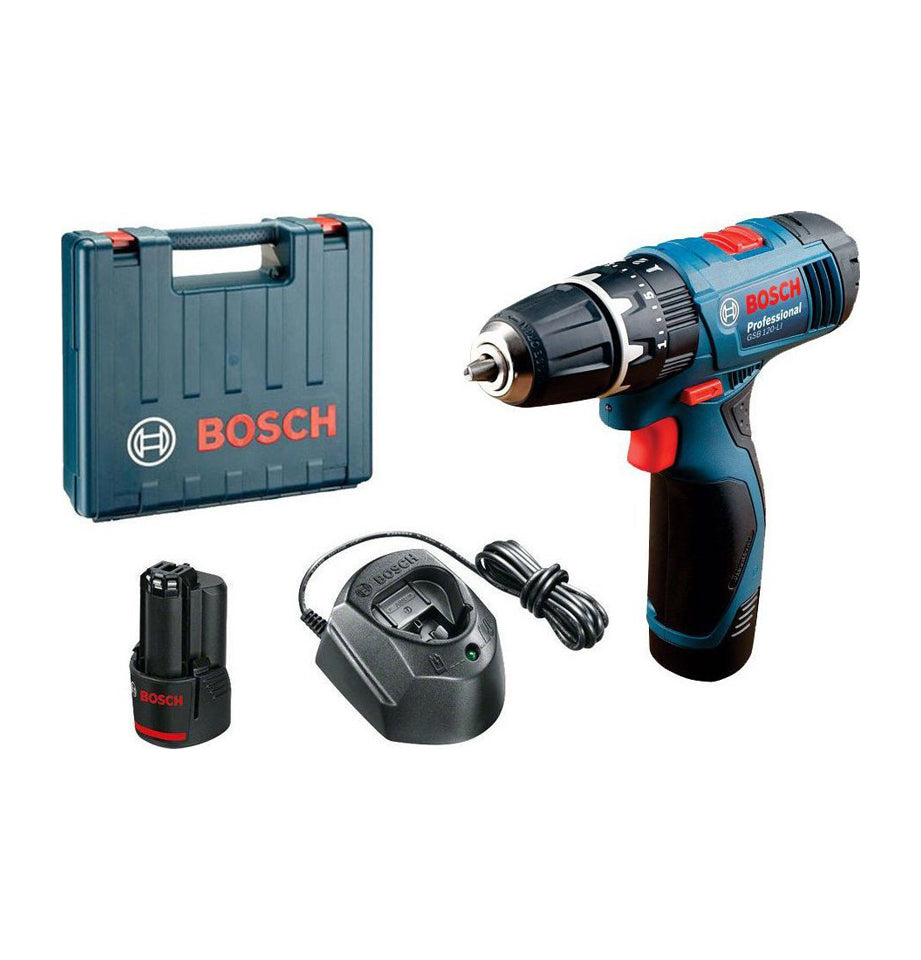

Cordless Impact Drill 12V
Cordless Impact Drill 12V
0 601 9F3 0K3
Cat No: 001.61.221
Power input: 12V / 1.5 Ah; 0-400 / 1,300 rpm - 2 SPEED; impact 18,750 bpm / torque 28 Nm; 2x inset pack battery/1x charger
Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Torque (soft/hard/max.) | 11/28/- Nm |
| No-load speed (1st gear / 2nd gear) | 0 – 400 / 0 – 1,300 rpm |
| Battery type | Lithium-ion |
| Max. impact rate | 19,500 bpm |
| Chuck capacity, min./max. | 0.8 / 10 mm |
| Torque settings | 20+2 |
| Tool holder | Three-jaw chuck |
| Screw diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 19 mm |
| Max. drilling diameter in steel | 6 mm |
| Max. drilling diameter in masonry* | 8 mm |
| Drilling diameter | |
|---|---|
| Max. screw diameter* | 7 mm |
| Max. drilling diameter in wood | 19 mm |
| Max. drilling diameter in steel | 6 mm |
| Max. drilling diameter in masonry* | 8 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Use your drill driver more flexibly – drive screws and drill in wood, steel and masonry!
- Flexibility in applications due to impact mechanism with single-sleeve keyless chuck for easy accessory changes and long runtime per battery charge for continuous operation
