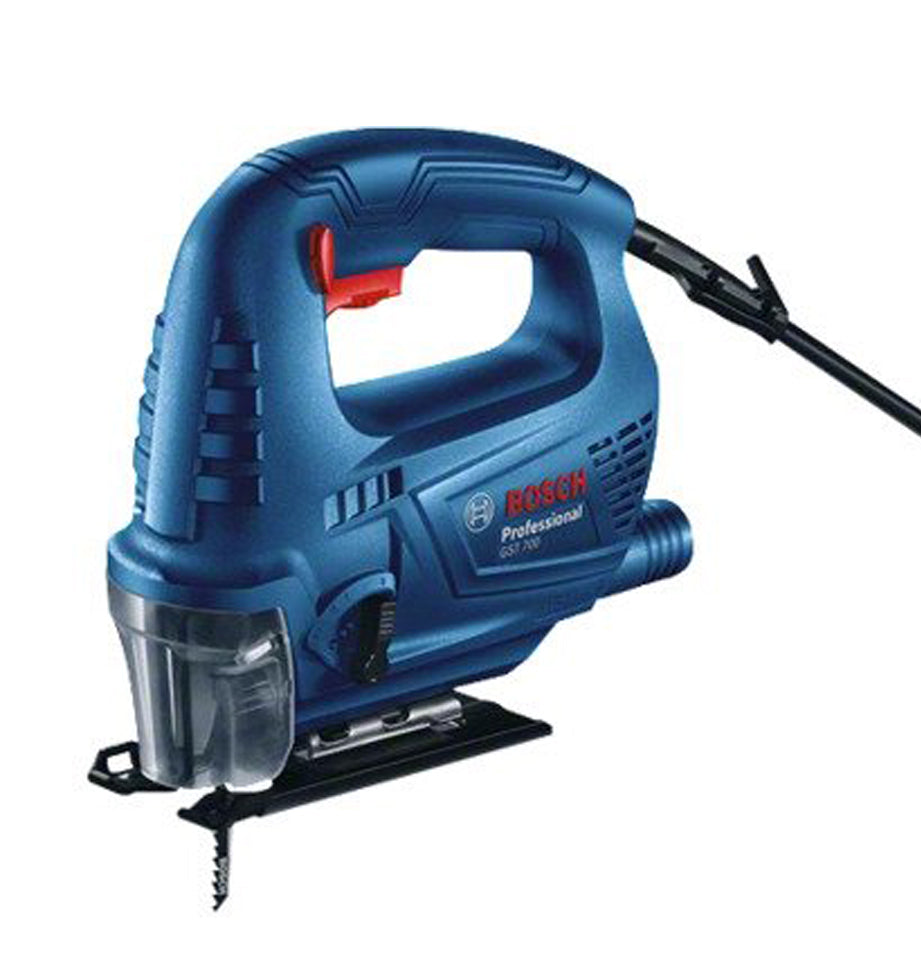

Jigsaw 500W
Jigsaw 500W
0 601 2A7 0K0
Cat No: 001.61.280
Power input: 500 W; in wood: 70 mm / 1,450-3,200 spm with pendulum action SDS blade change system
Technical data
Additional data | |
---|---|
Rated input power* | 500 W |
Stroke rate at no load | 1,450 – 3,200 spm |
Weight | 2.1 kg |
Saw, stroke length | 20 mm |
Cutting depth | |
---|---|
Cutting depth in wood* | 70 mm |
Cutting depth in aluminium* | 10 mm |
Cutting depth in non-alloyed steel | 6 mm |
Total vibration values (Sawing wood) | |
---|---|
Vibration emission value ah | 3.9 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Sawing sheet metal) | |
---|---|
Vibration emission value ah | 4.2 m/s² |
Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
Beyond expectations. Cut faster with ease.
- High performance in cutting speed and quality
- Optimised cutting results in various materials
- Faster and easier blade change
